19-W-4 Carbon Steel Heavy-Duty Bar Grating

19-W-4 is a commonly used designation for welded bar grating in North American-style specifications.

The designation can be understood as follows:

The 19-W-4 designation therefore describes the grating spacing and construction, rather than a complete material or load specification. Industry product listings also use 19-W-4 for multiple bearing bar sizes, including heavy-duty carbon steel configurations such as 1 × 1/4 in, 1-1/4 × 1/4 in, 1-1/2 × 1/4 in and other sizes.

The primary technical characteristics of 19-W-4 carbon steel bar grating are related to bearing bar spacing, cross bar spacing and bearing bar dimensions.

Send Your Requirements

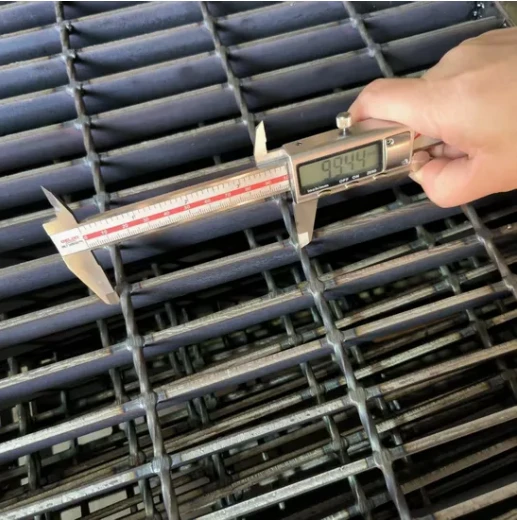

The bearing bar size is one of the most important variables because it directly affects the structural capacity of the grating. The 19-W-4 designation does not specify bearing bar height or thickness, so these dimensions should always be included in an RFQ or purchase specification.

19-W-4 carbon steel heavy-duty bar grating is widely used where a strong, open flooring system is required.

1.Industrial Platforms

Heavy-duty grating can be installed around machinery, production equipment and processing systems. Its open design also provides access for maintenance while allowing light, air and drainage through the floor.

2.Walkways and Catwalks

19-W-4 grating can be used to create elevated walkways and industrial catwalks. The bearing bar size should be selected according to the actual span and expected pedestrian or service loads.

3.Mezzanines

For industrial mezzanines, grating provides a lightweight open floor system compared with solid steel plate. Engineering calculations should be completed based on the structural design and expected loads.

4.Stair Treads

Carbon steel bar grating can be fabricated into stair treads with suitable nosing and end plates. Serrated bearing bars may be selected where additional slip resistance is required.

5.Power and Energy Facilities

Grating is commonly used for equipment access platforms, maintenance walkways and elevated operating areas in power and energy facilities.

6.Water and Wastewater Treatment

The open structure of grating is particularly useful around drainage channels, treatment equipment and maintenance platforms where water needs to pass through the flooring.

7.Chemical and Process Plants

In industrial processing facilities, grating can provide access around tanks, pipes, pumps and equipment. For corrosive environments, a galvanized or appropriately coated finish should be considered.

Industrial Platforms

Industrial Platforms

Wastewater Treatment

Walkways and Catwalks

Buyers sometimes compare 19-W-4 with 19-W-2 grating.

The main difference is the cross bar spacing.

Send Your Requirements

Both use the same 1-3/16 in bearing bar spacing, but 19-W-2 has cross bars at a closer 2 in spacing. This can be useful where a tighter surface pattern is required, including applications involving smaller wheels or specific opening requirements.

The choice between 19-W-4 and 19-W-2 should therefore be based on the actual application rather than assuming that one is universally stronger.

GNEE STEEL provides carbon steel bar grating for industrial and infrastructure applications, with customization available according to project requirements.

Our supply capabilities can include:

19-W-4 welded carbon steel grating
Heavy-duty bar grating
Smooth and serrated grating
Hot-dip galvanized grating
Painted carbon steel grating
Custom panel dimensions
Cut-to-size grating
Stair treads and fabricated grating
Customized edge treatment and accessories

For international B2B buyers, the key advantage of specifying the product clearly is that the supplier can evaluate the load, span, dimensions, material and finish together, reducing the risk of receiving a product that does not match the project requirements.

1.What does 19-W-4 mean in steel grating?

19-W-4 means the bearing bars are spaced 19/16 in (1-3/16 in) center to center, the grating is welded, and the cross bars are spaced 4 in center to center.

2.Is 19-W-4 a complete steel grating specification?

No. 19-W-4 only identifies the grating spacing and welded construction. Bearing bar size, material grade, surface, finish, panel dimensions and load requirements must also be specified.

3.What is the difference between 19-W-4 and 19-W-2?

Both have 1-3/16 in bearing bar spacing. 19-W-4 has cross bars at 4 in centers, while 19-W-2 has cross bars at 2 in centers.

4.Is 19-W-4 suitable for heavy-duty applications?

Yes, 19-W-4 can be supplied as heavy-duty carbon steel grating when appropriate bearing bar dimensions are selected. The required bar size should be determined from the span and design load.
