What Is Strut Channel C Channel for Solar Mounting System?
A strut channel C channel for solar mounting system (also referred to as solar strut C channel, PV mounting C profile, or solar racking C channel) is a specialized cold-formed steel structural member shaped like the letter "C," designed specifically to support photovoltaic panels, inverters, and related equipment in solar energy systems. Unlike standard C channels, solar-specific strut channels feature precision-engineered slot patterns, reinforced flange lips, and superior corrosion resistance to withstand extreme outdoor conditions-including high wind speeds, heavy snow loads, UV radiation, and salt spray in coastal environments.

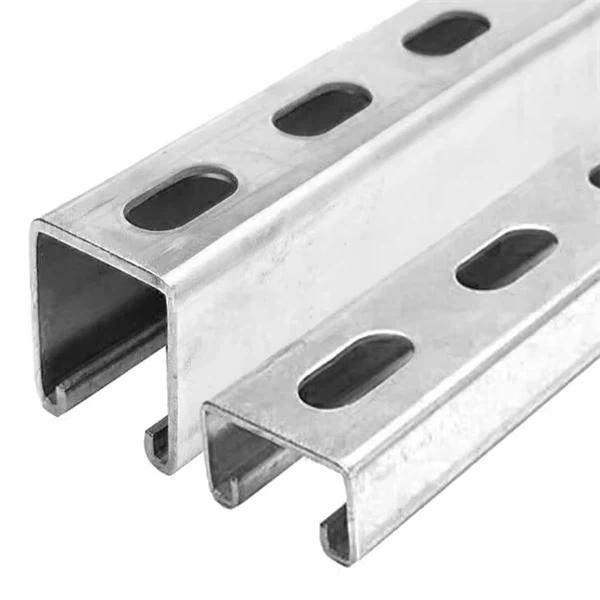

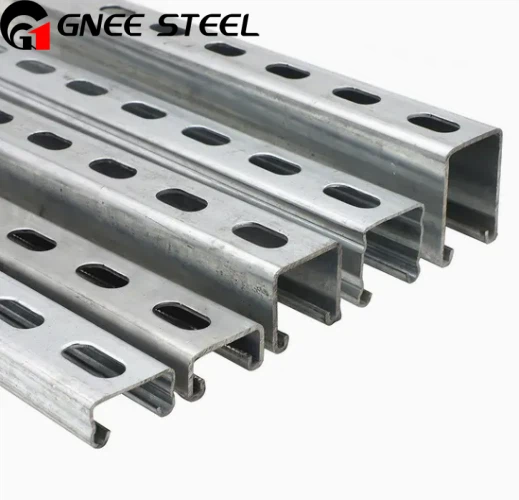

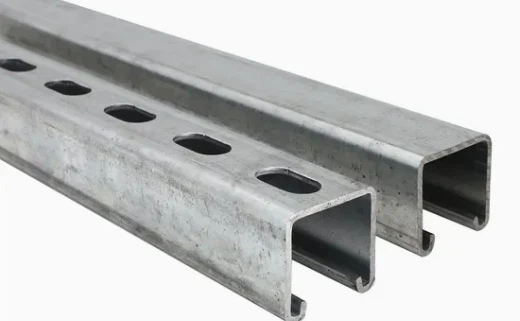

At GNEE STEEL, our strut C channels for solar mounting are manufactured from high-quality hot-dip galvanized (HDG) or zinc-aluminum-magnesium (Zn-Al-Mg) steel coils via precision cold rolling. The internal flange lips (as shown in the product image) provide exceptional grip for channel nuts and fasteners, while the continuous slotted design enables infinite adjustment during installation, reducing on-site construction time significantly. Compliant with international standards (DIN 6923, ISO 4161, ASTM A653), our strut channels ensure perfect compatibility with global solar mounting accessories and system designs.
Advantages
1. High-Strength Cold-Formed Engineering
Our strut channel C channel for solar mounting is produced using state-of-the-art cold-forming machinery, ensuring precise dimensional accuracy (tolerance ±0.1mm) and consistent mechanical properties. The cold working process induces work hardening, increasing the yield strength by 20–50% compared to standard hot-rolled profiles, enabling our channels to support heavy PV module arrays while maintaining structural integrity. The reinforced web and flange design further enhance bending and torsional resistance, critical for withstanding typhoon-force winds and heavy snow loads in high-latitude regions.
2. Industry-Leading Corrosion Protection
Solar installations demand long-term durability, and GNEE STEEL's strut channels are coated with premium anti-corrosion layers to ensure a 25–30+ year service life:
Hot-Dip Galvanized (HDG): Zinc coating thickness ranges from 65μm to 120μm (80–400g/m²), compliant with ASTM A123. This sacrificial coating protects against rust, moisture, and chemical corrosion, ideal for inland and industrial solar projects.
Zinc-Aluminum-Magnesium (Zn-Al-Mg): A advanced alloy coating with 2–3 times the corrosion resistance of standard galvanizing, offering superior protection in coastal, salt-rich, and high-humidity environments.
Pre-Galvanized: For lightweight rooftop systems, providing a clean, uniform finish with basic corrosion resistance for low-exposure applications.
3. Modular Design for Seamless Solar System Integration
The standardized slot pattern (14×30mm or custom) and universal flange design of our strut C channels ensure full compatibility with all major solar mounting hardware, including clamps, L-brackets, angle irons, and thread rods. The modular structure allows for easy expansion or modification of solar farms, while the customizable length (3m–12m) and profile size (41×21mm, 41×41mm, 41×62mm, etc.) adapt to diverse project layouts-from small residential rooftops to large-scale ground-mounted PV farms.
4. Lightweight & Cost-Efficient Solution
Compared to traditional aluminum mounting frames, our hot-dip galvanized strut C channels offer a higher strength-to-weight ratio, reducing transportation costs by up to 30% and minimizing the load on building roofs or foundation structures. The cold-forming process reduces material waste by 20–30% compared to hot-rolled profiles, while the pre-slotted design eliminates on-site drilling, lowering labor costs and accelerating project delivery timelines.
Technical Specifications & Standard Sizes
To ensure optimal performance for solar projects of all scales, GNEE STEEL offers a comprehensive range of strut channel C channel for solar mounting systems, with strict adherence to international quality standards. Below is a detailed technical specification table covering our core product variants:
-
Standard Specification Table (Solar Strut C Channel)
| Profile Size (H×W, mm) | Wall Thickness (mm) | Steel Grade | Zinc Coating (g/m²) | Max Wind Load Resistance | Max Snow Load Resistance | Standard Length (m) | Key Solar Application |
|---|---|---|---|---|---|---|---|
| 41×21 (Shallow) | 1.5 / 2.0 / 2.5 | Q235B/S235JR | 120 / 275 / 400 | 55 m/s (1.2 kN/m²) | 1.0 kN/m² | 3 / 6 / Custom | Rooftop PV, small residential solar systems |
| 41×41 (Standard) | 2.0 / 2.5 / 3.0 | Q345B/S355JR | 275 / 400 | 65 m/s (1.6 kN/m²) | 1.6 kN/m² | 3 / 6 / 12 / Custom | Commercial rooftop, ground-mounted solar farms |
| 41×62 (Deep) | 2.5 / 3.0 / 3.5 | S350GD/ZM | 275 / 400 | 75 m/s (2.2 kN/m²) | 2.2 kN/m² | 6 / 12 / Custom | Large-scale solar farms, high-wind coastal regions |
| Custom Profile | 1.5–3.5 | Customizable | Customizable | Customizable | Customizable | Custom (3–18m) | Specialized solar projects (agrivoltaics, floating PV) |
-
Critical Mechanical Properties (Q345B Grade, 2.5mm Thickness)
| Parameter | Value | Relevant Standard |
|---|---|---|
| Yield Strength (min) | ≥345 MPa | EN 10025, GB/T 1591 |
| Tensile Strength | 470–630 MPa | EN 10025, GB/T 1591 |
| Elongation (≥) | 21% | EN 10025, GB/T 1591 |
| Bending Resistance (41×41) | ≥12 kN/m | GB/T 706, ASTM A36 |
| Slot Fastening Torque | ≤45 N·m | DIN 6923, ISO 4161 |
Note: All products undergo rigorous third-party testing for dimensional accuracy, coating adhesion, and mechanical properties, with full Material Test Reports (MTR) provided for every order.

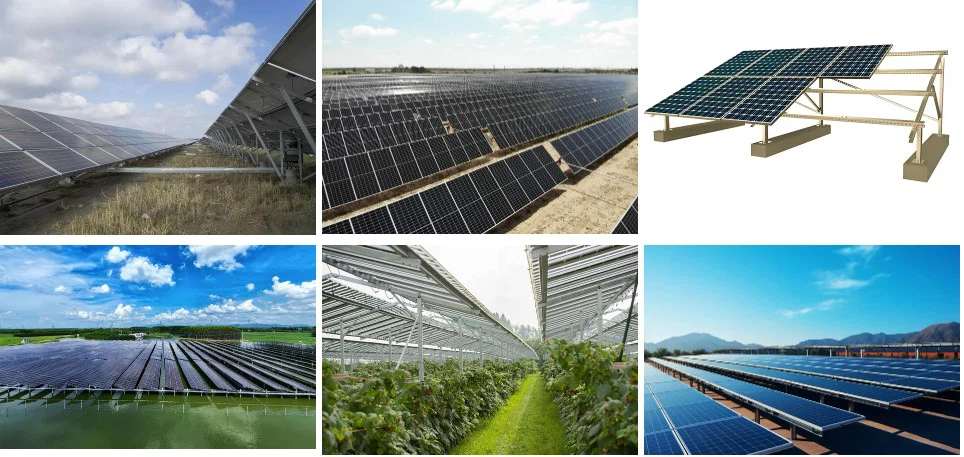

Key Application Scenarios

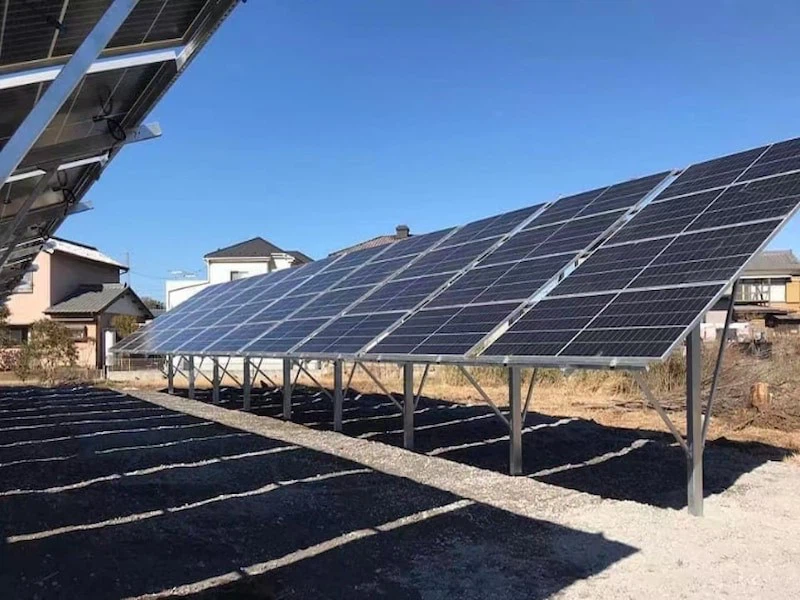

1. Ground-Mounted Solar Farms
Our 41×41 and 41×62 strut channels, paired with spiral ground piles or concrete foundations, form the backbone of large-scale ground-mounted PV systems. The high load-bearing capacity (up to 2.2 kN/m² snow load resistance) ensures stability in open fields, while the modular design simplifies the installation of thousands of PV modules in grid patterns. Ideal for utility-scale solar projects, agrivoltaics (solar + agriculture), and solar parks in arid, windy regions.

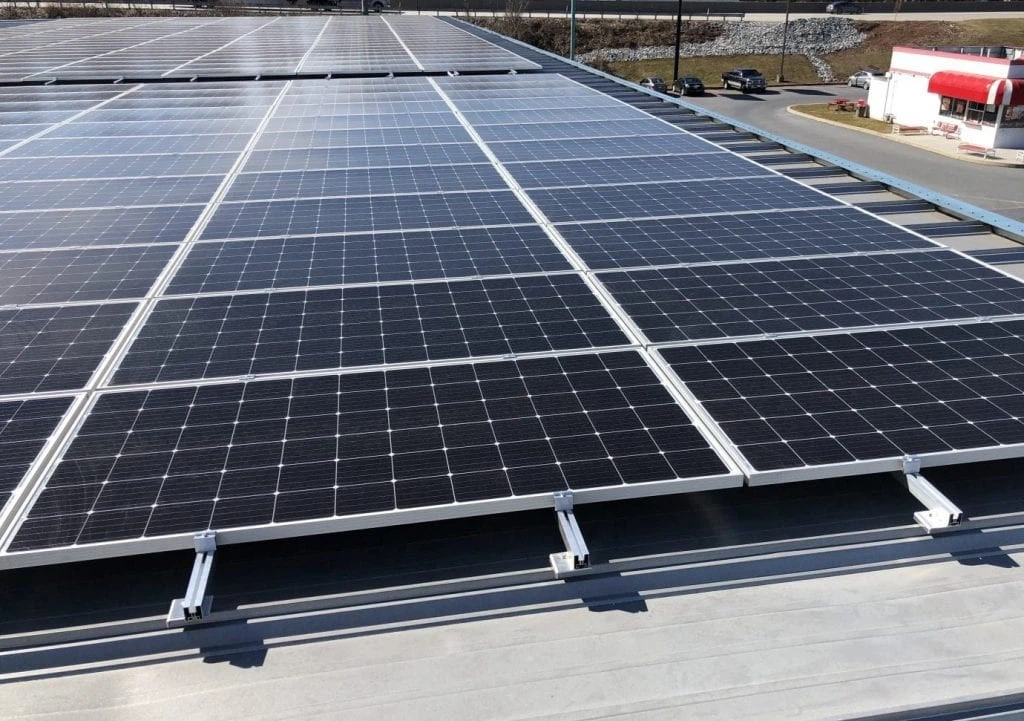

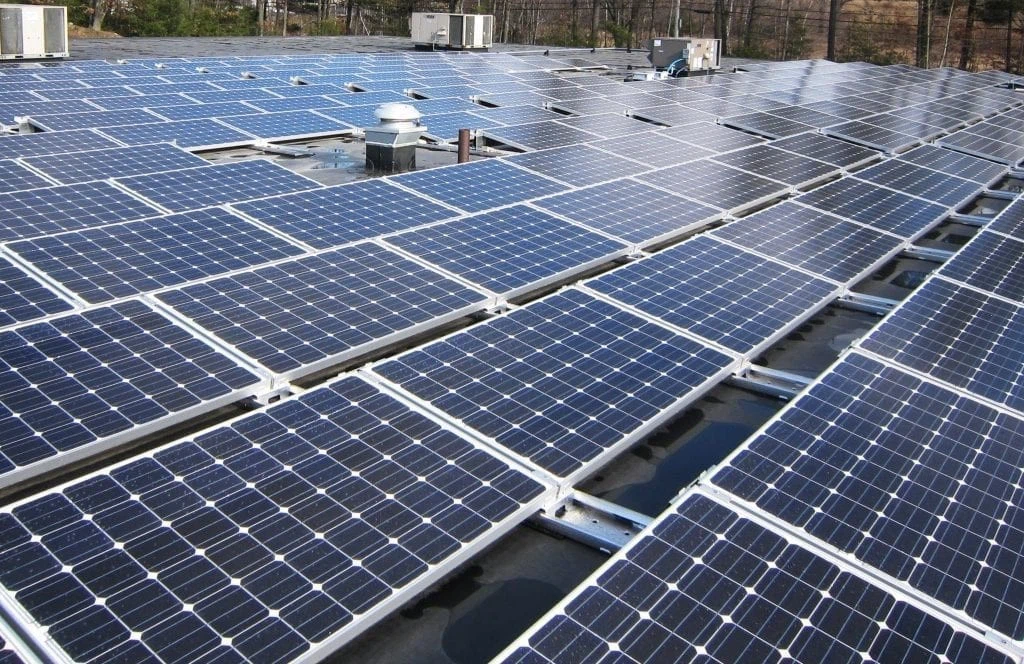

2. Rooftop Solar Systems (Residential & Commercial)
The lightweight 41×21 and 41×41 strut channels are ideal for rooftop installations, minimizing structural load on residential homes, office buildings, and industrial warehouses. The pre-slotted design enables quick fixation to roof rails or concrete surfaces, while the corrosion-resistant coating protects against rain, UV radiation, and rooftop condensation. Perfect for distributed solar generation and net-zero energy buildings.
3. Solar Carport & Canopy Systems
Strut C channels are the preferred choice for solar carports, providing durable support for PV panels above parking lots, driveways, and charging stations. The reinforced flange design withstands vehicle impact and heavy snow loads, while the customizable length allows for the creation of wide, covered carport structures. Combined with solar car charging systems, our strut channels enhance the functionality and value of parking facilities.

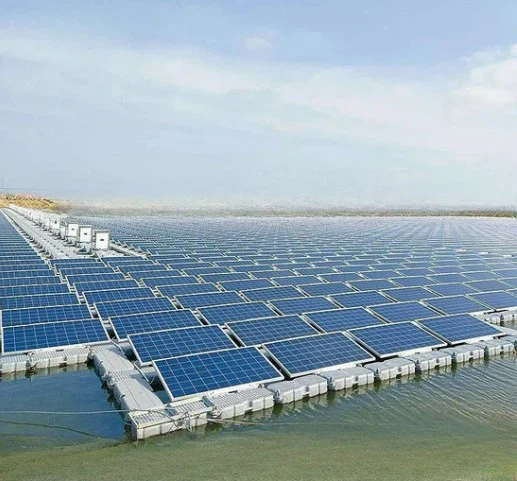

4. Floating Solar PV (Aquatic Solar)
For floating solar projects on reservoirs, lakes, and fish ponds, our zinc-aluminum-magnesium (ZM) coated strut channels offer exceptional resistance to water corrosion and UV degradation. The lightweight design reduces the load on floating pontoons, while the modular structure enables easy assembly on water surfaces, supporting both small-scale floating PV and large-scale aquatic solar farms.
5. Solar Accessory & Equipment Support
Beyond PV panel mounting, our strut channels are used to support solar inverters, transformers, cable trays, and HVAC systems in solar control rooms and substations. The flexible slot pattern allows for precise positioning of heavy electrical equipment, ensuring safe and stable operation of solar power plants.

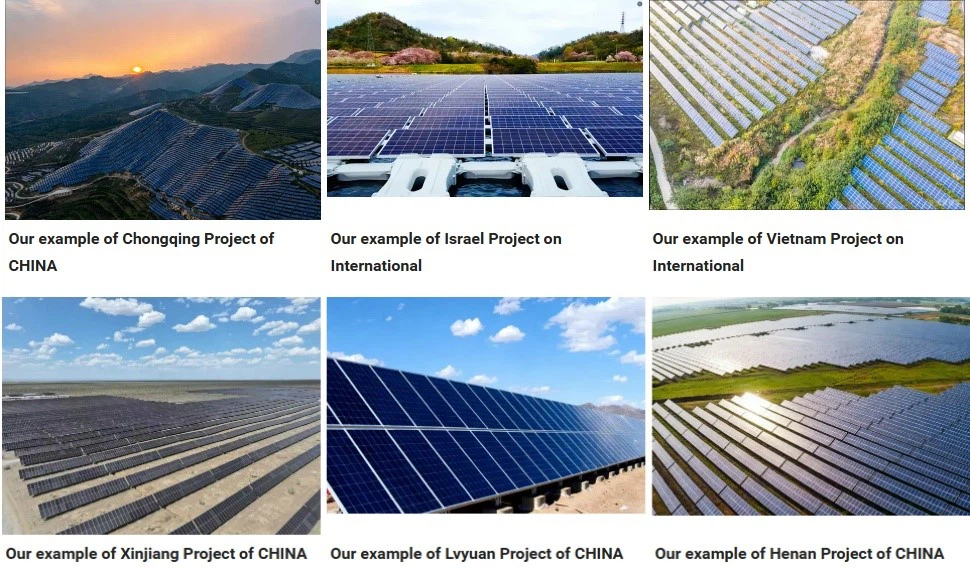

Case Studies
Frequently Asked Questions (FAQ)
Q1: What is the difference between strut C channel and standard C channel for solar mounting?
A: Strut channel C channel for solar mounting features precision-engineered slots, reinforced flange lips, and superior corrosion resistance (HDG/ZM coating) to withstand outdoor solar conditions. Standard C channels lack the modular slot design and heavy-duty coating, making them unsuitable for long-term PV project exposure. GNEE STEEL's solar strut channels are also compliant with international solar mounting standards (DIN 6923), ensuring compatibility with global hardware.
Q2: What zinc coating thickness is recommended for solar projects in coastal areas?
A: For coastal regions with high salt spray and humidity, we recommend a minimum zinc coating thickness of 275g/m² (65μm) or a zinc-aluminum-magnesium (ZM) coating. The ZM coating offers 2–3 times the corrosion resistance of standard galvanizing, ensuring a 30+ year service life for solar installations in harsh marine environments.
Q3: Can GNEE STEEL provide custom-sized strut channels for non-standard solar projects?
A: Yes! We specialize in custom fabrication for solar strut C channels. We can produce custom profile sizes (e.g., 50×50mm, 80×45mm), custom lengths (up to 18m), and special slot patterns to meet the unique requirements of agrivoltaics, floating solar, and large-scale solar farm projects. Our engineering team will work with you to design a solution that optimizes structural performance and cost efficiency.
Q4: How do I calculate the required strut channel size for my solar project?
A: The selection of strut channel size depends on four key factors: PV module weight, roof span, wind load, and snow load. For example, 41×21×1.5mm channels are suitable for small residential rooftops with low wind loads, while 41×62×3.0mm channels are required for large ground-mounted farms in high-wind regions. Our engineering team provides free load calculation and design assistance-simply share your project details (span, location, module quantity), and we will recommend the optimal channel size.
Q5: What is the service life of GNEE STEEL's strut channel C channel for solar mounting?
A: With proper installation and maintenance, our hot-dip galvanized strut channels have a service life of 25–30 years, and our zinc-aluminum-magnesium coated channels can last up to 40 years in mild environments. In coastal industrial zones, the service life remains 20–25 years, ensuring long-term reliability for solar energy investments.
