Products Description

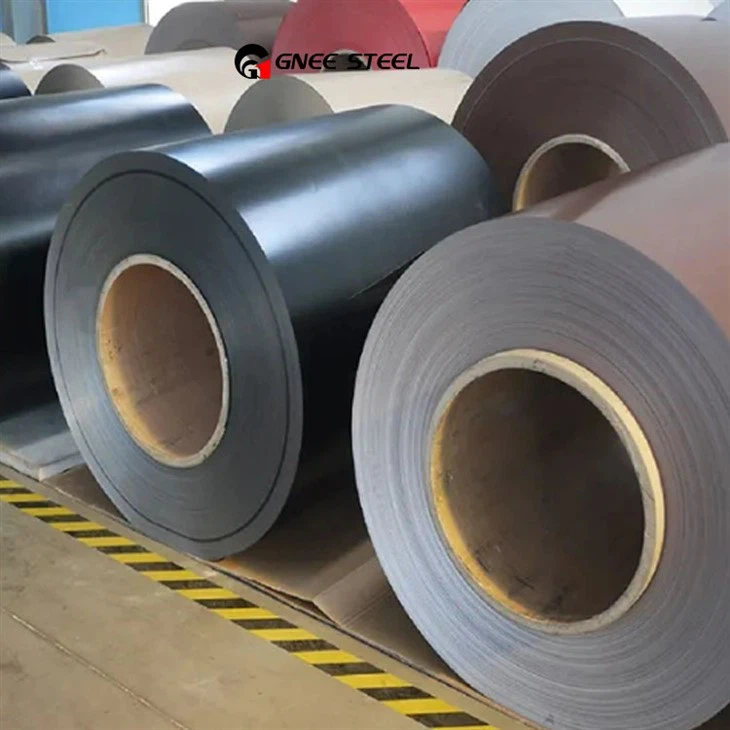

Pre Painted Metal Coils

Prepaint steel coil is a bare metal substrate or corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. The metal is unwound, cleaned and chemically treated during the process. Depending on product specifications, one or both sides may then be primed and coated, oven cured and rewound.

As one of pre painted steel coil suppliers, GNEE Steel supplies a variety of prepainted steel coils and sheets to meet different application needs. We offer service capabilities include slitting, shearing, stretcher leveling, blanking and metallurgical support as customers' requirements.

Q195 Q235 Q345, DX51D DX52D DX53D DX54D, S280GD S320GD S350GD, SS230 SS250 SS275 etc are available.

Standard	JIS G3322 CGLCC ASTM A755 CS-B	Surface coating color	RAL colors
Back side coatingcolor	Light grey ,white and so on	Package	export standard package or as request
Type of coating process	Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying
Type of substrate	hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, zinc aluminum coil, electro-galvanized
Thickness	0.11-2.5mm	Width	600-1250mm
Coil Weight	3-9Tons	Inside Diameter	508/610mm
Zinc Coating	Z50-275g/㎡ AZ30-150g/㎡	Painting Coating Thickness	Top: 8-35 um Back: 3-25 um
Painting Color Style	2/1,2/2	Length	As,require
Coating introduction	Top paint: PVDF, HDP, SMP, PE, PU
	Prime paint: Polyurethane, Epoxy, PE
	Back paint: Epoxy, Modified polyester
Productivity	150,000Tons/year

painted sheet metal coils

painted pleate metal coils

prepainted coils

Base Metals for Prepainted Steel Coil:

• Cold-rolled base metal

• Hot-dip zinc coated base metal

• Hop-dip alu-zinc base metal

• Electro-galvanized base metal

• Hop-dip zinc-alu-mag base metal

Applications of PPGI Pre Painted Steel Coil:

1. Construction and building: roofing; ventilating duct; handrail; partition panel;etc.

2. Electric appliance: refrigerator; washing machine; refrigerator; DVD;etc.

3. Transportation: oil tank; road sign; etc.

4. Agriculture:barn; etc.

5. Others:vending machine; game machine; etc.

Advanced Prepainted Coils Production Line:

We have a production line of color coated steel, the supply ability is 480 thousand tons every year, the maximum speed is 80 M/Min, thickness is 0.15 m–0.7 mm.

1. Technique equipment: adopt the method of double painting double dry, the key equipment are imported from Japan and using the German SIEMENS control system.

2. The classify of Painting: Polyester, Silicon modified polyester, High-durable polyester.

The type of 1450 galvanized production line had adopted the worlds advanced production technique and advanced equipment like full-automatic AB electric control system, etc., which can output 240 thousand tons high quality galvanized sheet with thickness 0.13-1.2 mm every year.

Qualification Certificate:

pre painted aluminium coils

Our advantage:

1. Professional knowledge:

16 years of manufacturing experience: We know how to handle every step of production correctly.

2. Competitive price:

We produce our own resins and coatings, which greatly reduces our costs!

3. Accuracy:

We have a technical team of 50 people and a quality control team of 40 people to ensure that our products are exactly what you want.

4. Materials:

All color steel plates are made of high-quality raw materials.

5.Certificate:

Our products have passed SGS, BV, ISO9001:2008, ISO14001:2004 and other certifications.

6. Productivity:

We have 1 large production lines to ensure that all your orders can be completed as soon as possible.

GNEE Steel Company:

GNEE Steel Group is a company specializing in the production of building materials. Has 16 years of export experience. We have cooperative factories for a variety of steel materials.

gnee steel

We have participated in exhibitions in Shanghai, Guangzhou, Dubai, Jeddah, Qatar, Sri Lanka, Kenya, Ethiopia, Brazil, Chile, Peru, Thailand, Indonesia, Vietnam, Germany, etc. Welcome to visit our booth and negotiate face to face.
