A power transformer is a type of transformer that is used to transmit electrical energy between the distribution primary circuits and the generator. These transformers are used in distribution networks to connect step-down and step-up voltages.
The main function of 138kV and 132kV power transformers is to convert and transmit electrical energy. It can convert a specific value of AC voltage into another value of AC voltage, or convert AC voltage into DC voltage.
138kV and 132kV Transformer Specifications
| 132kv Class Three-phase two winding OLTC power transformer | |||||
| Rated Power | High Voltage | Low Voltage | No-load Loss(kw) | On-load Loss(kw) | No Load current(%) |
| 10MVA | 132 kV 138 kV |
6.3 kV 6.6 kV 10.5 kV 11 kV |
11.8 | 51.2 | 0.82 |
| 12MVA | 13.7 | 59.5 | 0.82 | ||
| 15MVA | 16.3 | 73.1 | 0.76 | ||
| 20MVA | 19.5 | 88.4 | 0.76 | ||
| 25MVA | 22.7 | 105 | 0.69 | ||
| 30MVA | 27.4 | 126 | 0.69 | ||
| 37.5MVA | 32.9 | 148 | 0.63 | ||
| 50MVA | 38.9 | 184 | 0.63 | ||
| 60MVA | 46.4 | 221 | 0.57 | ||
| 110kv Class Three-phase two winding NLTC power transformer | |||||
| Rated Power | High Voltage | Low Voltage | No-load Loss(kw) | On-load Loss(kw) | No Load current(%) |
| 10MVA | 132 kV 138 kV |
6.3 kV 6.6 kV 10.5 kV 11 kV |
11.8 | 51.2 | 0.64 |
| 12MVA | 12.4 | 59.5 | 0.64 | ||
| 15MVA | 15 | 73.1 | 0.59 | ||
| 20MVA | 17.8 | 88.4 | 0.59 | ||
| 25MVA | 21 | 105 | 0.54 | ||
| 30MVA | 25 | 126 | 0.54 | ||
| 37.5MVA | 29.9 | 148 | 0.56 | ||
| 50MVA | 35.3 | 178.5 | 0.52 | ||
| 60MVA | 41.9 | 221 | 0.48 | ||

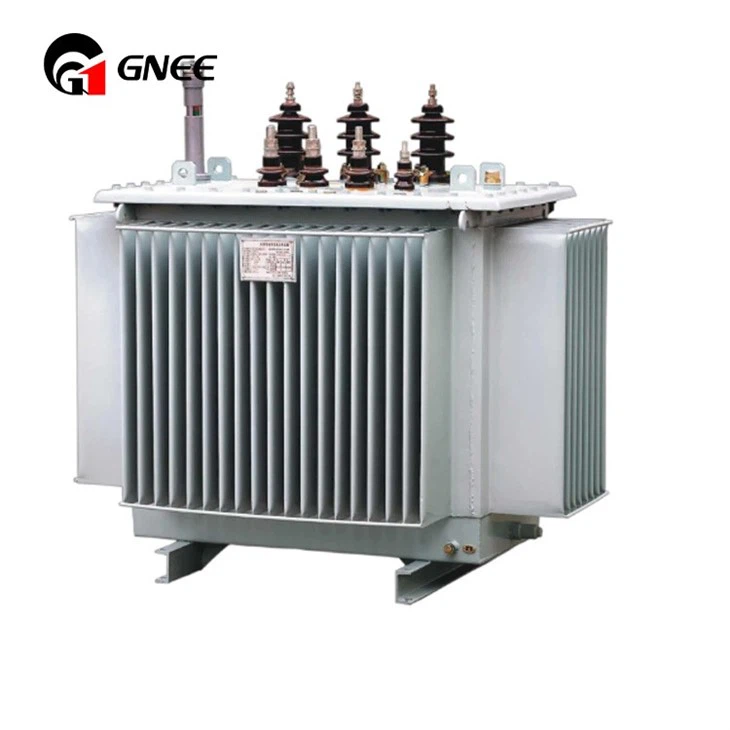

Power Transformer
Applications of Power Transformers
- The power transformer is mainly used in electric power generation and at distribution stations.
- It is also used in Isolation transformers, earthing transformers, six pulse and twelve Pulse rectifier transformers, solar PV farm transformers, wind farm transformers and in Korndörfer autotransformer starter.
- It is used for reducing power losses during electric power transmission.
- It is used for high voltage step-up and high voltage step-down.
- It is preferred during long-distance consumer cases.
- And preferred in cases where load runs at full capacity 24x7.
our gNEE factory
Packaging&shipping
test creatificate
exhibition photos
customer visit case
gNEE Teams
The design and manufacturing of GNEE 138KV 132KV transformers fully meet GB 6451, IEC 60076, AS NZS 60076, CSAC88-16, ANSI/IEEE C57.12.00, GOST R 52719, EN60076 standards. GNEE's professional engineering team has more than 20 years of international project transformer design experience. According to your needs and technical requirements, provide you with the most suitable transformer solution.
