Products Description
JIS G3113 is a Japanese industrial standard specifically used to regulate hot-rolled steel plates and strips for automotive structures. SAPH310 automotive steel coils are mainly used for the production of automotive structural parts such as automotive frames and wheels that require forming and processing performance.
JIS G3113 SAPH310 automotive steel can be treated with hot-dip zinc coating and hot-dip zinc-iron alloy coating. These two surface treatment technologies can significantly improve the corrosion resistance and service life of steel.
Products Data
JIS G3113 SAPH310 automobile structure steel plate Chemical Composition and Mechanical Property
| Grade | P | S |
| SAPH310 | ≤0.040 | ≤0.040 |
| Grade | Tensile Strength N/mm² |
Yield Strength N/mm² |
Elongation % | Bending | |||||||||
| Thickness / mm | Thickness / mm | Bending angle | Inside radius | ||||||||||
| Thickness/mm | |||||||||||||
| ＜6.0 | 6.0~8.0 | 8.0~14.0 | 1.6~2.0 | 2.0~2.5 | 2.5~3.15 | 3.15~4.0 | 4.0~6.3 | 6.3~14 | ＜2.0 | ≥2.0 | |||
| SAPH310 | ≥310 | ≥185 | ≥185 | ≥175 | ≥33 | ≥34 | ≥36 | ≥38 | ≥40 | ≥41 | 180° | --- | 1.0 times of thickness |
Products Display

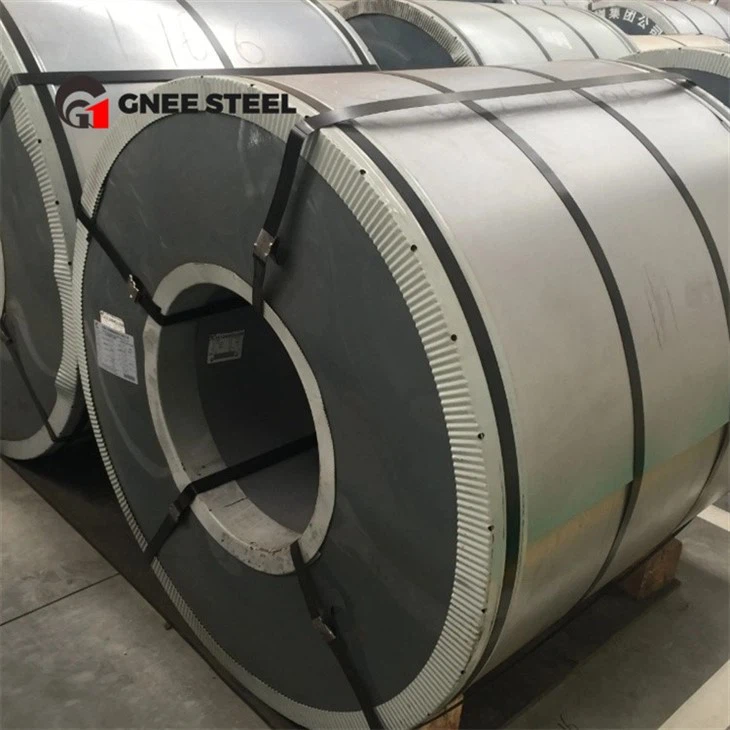

JIS G3113 SAPH310 Automotive steel coil
Advantages of Choose GNEE
GNEE has sophisticated processing equipment, strong technical strength and advanced technology. Our quality is guaranteed. Has obtained CQC ISO 9001 certification in 2008.
We are cooperating with more than 40 countries including South Korea, Australia, the United States, Russia, Turkey, Saudi Arabia, etc. Our export sales have reached 30 million US dollars per year.
If any question,please contact with us freely by E-mail or Telephone.
GNEE CUSTOMER VISIT
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q Can I have a sample for testing?
A: Free samples, you just need to pay the freight.
Q：Do you have inspection for the products before packing?
A: 100% self-inspection for the products, we put the quality as our first priority.
Q what kind of payment does your company support?
A: T/T, 100% L/C at sight, are all accepted.
