Products Description
DIN3570 U-bolt is a standardized fastener, formulated according to German Industrial Standard (DIN) 3570-1968, specially designed for pipes with diameters from 20 to 500, used as bow clamps.
U-bolts are usually made of carbon steel or stainless steel, and can be galvanized to increase their corrosion resistance and service life. They have a wide range of applications in the industrial field, especially in environments that require high-strength connections and corrosion resistance.
Products Data
| Nominal diameter | 30 | 38 | 46 | 52 | 64 | 82 | 94 | 120 | 148 | ||||
| d | |||||||||||||
| d 1 | 25~26.9 | 30~33.7 | 38~42.4 | 44.5~48.3 | 57~60.3 | 76.1 | 88.9 | 108~114.3 | 133~139.7 | ||||
| d 1 | Applicable pipe size | Metric | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | ||
| d 1 | Imperial | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" | - | |||
| b ① | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 60 | 60 | ||||
| ds | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 16 | 16 | ||||
| d 3 | M10 | M10 | M10 | M10 | M12 | M12 | M12 | M16 | M16 | ||||
| L ① | 70 | 76 | 86 | 92 | 109 | 125 | 138 | - | - | ||||
| L 1 | 28 | 31 | 37 | 40 | 49 | 57 | 66 | 171 | 191 | ||||
| n | 40 | 48 | 56 | 62 | 76 | 94 | 106 | 136 | 164 | ||||
| 100 pieces weight (steel)≈kg | Type A | 9.4 | 10.5 | 12 | 12.9 | 22.2 | 25.9 | 28.8 | 64 | 72.7 | |||
| Type B | 6.8 | 7.7 | 9 | 9.7 | 16.8 | 19.8 | 22.4 | - | - | ||||
Products Display

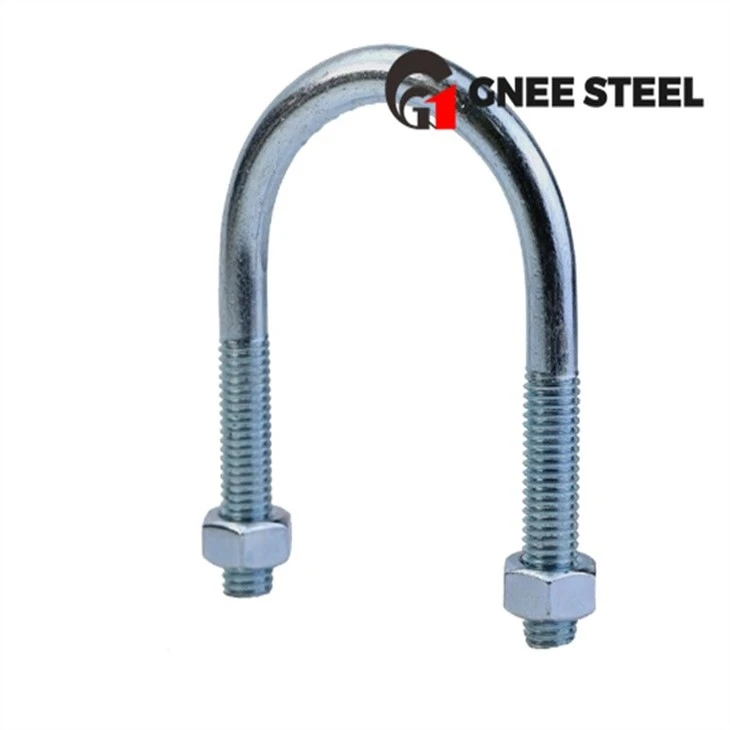

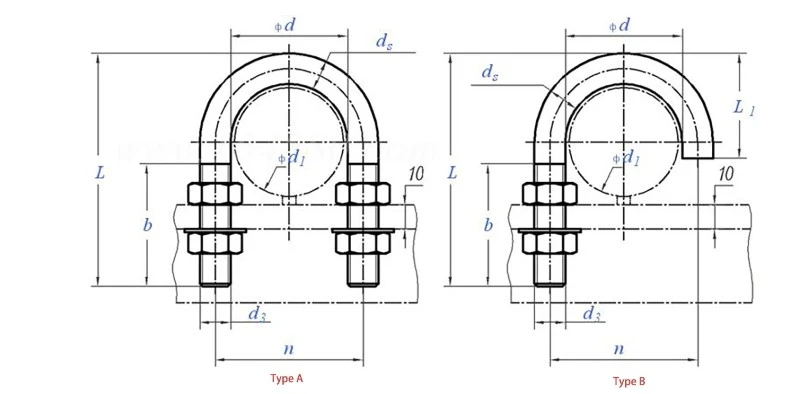

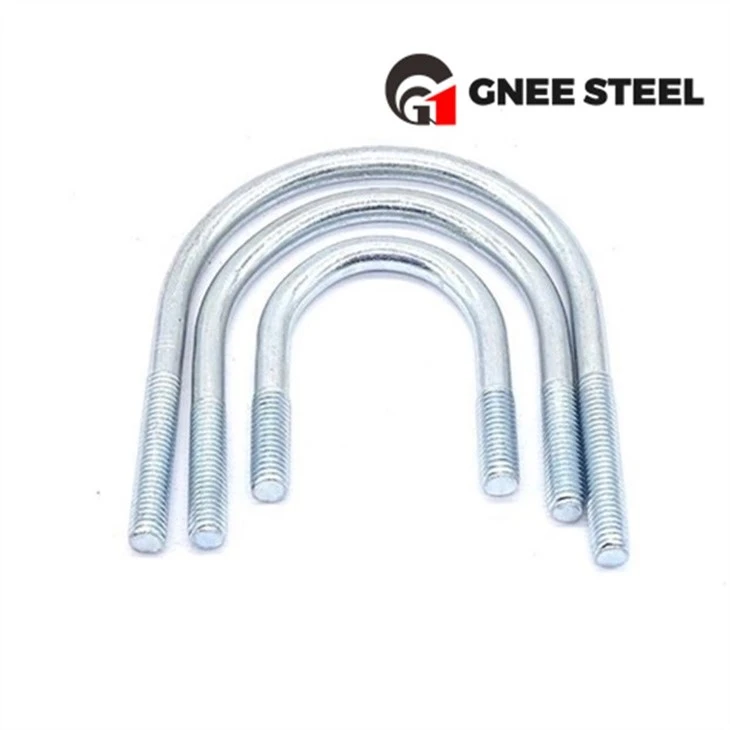

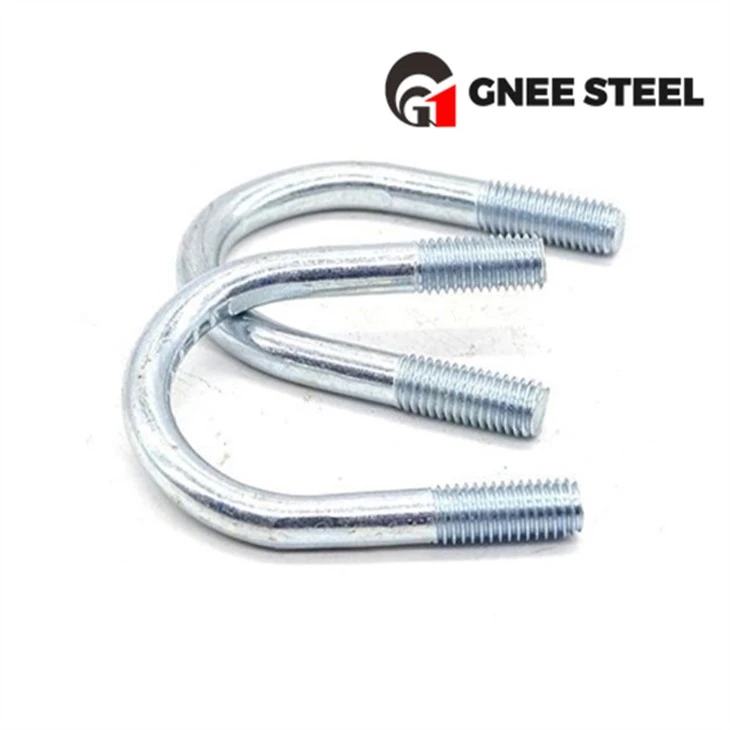

Bow clamp DIN 3570
