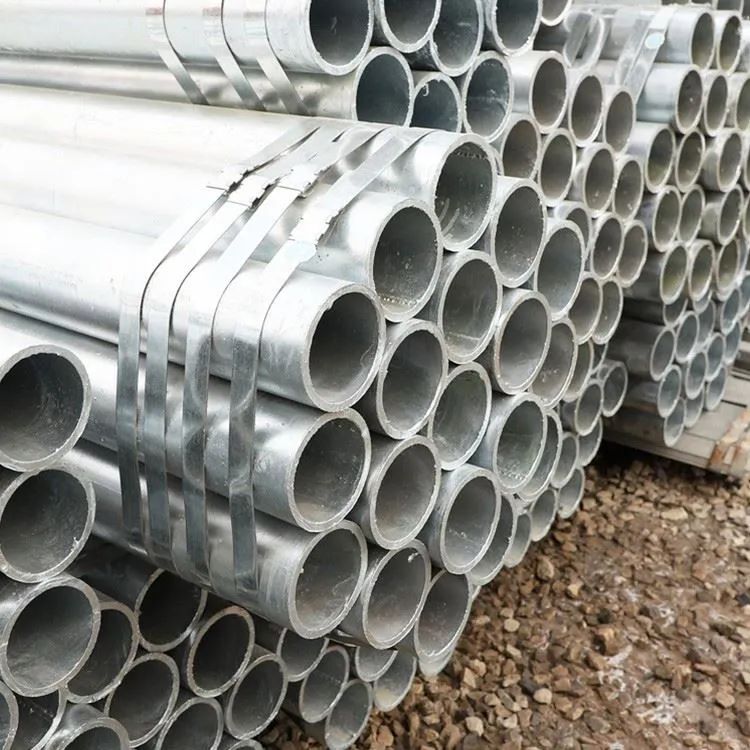

ASTM A572 Carbon Steel Pipe Composition Standard
ASTM A572 Carbon Steel Pipe Composition Standard

ASTM A572 Carbon Steel Pipe Composition Standard

1.Chemical Component Analysis 2.Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation) 3.Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc)
Send Inquiry
Chat Now

Get a free quote! Contact us today!

Send E-mail: sale@gneegi.com

Tel: +86 15824687445

Grade

C

max.%

Mn

max.%

P

max.%

S

max.%
50 [345] 0.23 1.35D 0.04 0.05



A572 Steel Tube Mechanical Properties Chart

A572 Gr 50 Material Properties Yield Point, min ksi [MPa] Tensile Strength, min ksi [MPa] Minimum Elonga­tion, % B,C,D
ksi Mpa ksi Mpa in8in.
[200 mm]		 in2in.
[50 mm]
50 [345] 50 [345] 65 [450] 18 21



ASTM A572 Grade 50 Pipe Production Range

Best price & quick delivery of ASTM A572 Grade 50 Pipe in India



TYPE

SSAW

LSAW

ERW

SMLS

Production Range:

OD: 219mm – 3120mm
WT: 3mm – 25mm

OD: 16″-64″
WT: max 50mm

OD: 1/8"-24"
WT: max 26.5mm

OD: 1/8"-36"
WT: 1.25mm – 50mm

Length:

Random Length / Fixed Length / SRL / DRL

Usage:

Mechanical Tubing Liquid Transport Steel Pipe
General structure, mechanical structure Transport liquid, gas, oil

Test:

1.Chemical Component Analysis
2.Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation)
3.Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc)
4.Exterior Size Inspection
5.Nondestructive Test (Ultrasonic flaw detector, Eddy current flaw detector),
6.Hydrostatic Test

Surface:

Fusion bond Expoxy Coating / Coal Tar Expoxy / 3PE / Varnish Coating
Bitumen Coating / Black Oil Coating as per customer's requirement

Mill Test Certificate:

EN 10204/3.1B



Steel Grade A572 Gr 50 Tube Size In Inch

1/8" IPS(.405" O.D.) 3 1/2" IPS( 4.000" O.D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540" O.D.) 4" IPS(4.500" O.D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675" O.D.) 5" IPS( 5.563" O.D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840" O.D.) 6" IPS(6.625" O.D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050" O.D.) 8 " IPS(8.625" O.D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′ O.D.) 10" IPS(10.750" O.D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660" O.D.) 12" IPS(12.750" O.D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900" O.D.) 14" IPS(14.000" O.D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375" O.D.) 16" IPS(16.000" O.D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875" O.D.) 18" IPS (18.000" O.D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500" O.D.)
SCH 5, 10, 40, 80, 160, XXH
