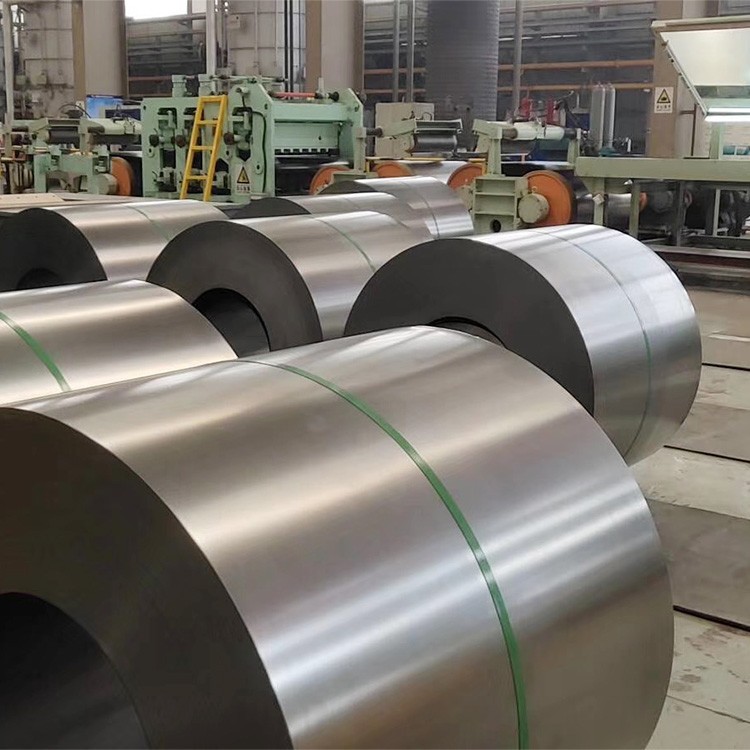

Material DX51D-Z275 ASTM A653 G90 Galvanized Steel

Technical Standard

EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 JIS G3302,ASTM A653M,EN10327,DIN17162,EN 10142,EN10292,

Steel Grade

Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ
CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement

Type

Coil/Sheet/Plate/Strip

Thickness

0.12-6.00mm,or customer's requirement

Width

600mm-1500mm, according to customer's requirement

Type of Coating

Hot Dipped Galvanized Steel(HDGI)

Zinc Coating

30-275g/m2

Surface Treatment

Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) galvanized,PVC,black and color painting,transparent oil,anti rust oil

Surface Structure

Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)

Coil Weight

3-20 metric ton per coil

Package

Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement

Export market

Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
