S320GD+Z S320GD+ZF galvanized sheet (coil) has excellent coating adhesion and outstanding corrosion resistance, precise control of zinc coating thickness, high dimensional accuracy, and smooth surface. Its mechanical properties, processing properties and welding properties are excellent.
S320GD+Z S320GD+ZF Galvanised Plate related parameters
|
Grade |
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD |
Package |
Standard export seaworthy packing |
|
Application |
building, outside material (roof, wall material) industrial, commercial, residential |
Width |
600mm to 1500mm |
|
Surface Treatment |
Unoil,Dry,Chromate Passivated, Non-chromate Passivated |
Coil ID |
508mm or 610mm |
|
Delivery time |
7-15 days or negotiation according to the quantity |
Capacity |
1,500,000MT/year |
|
Remark |
MTC will be handed on with shipping documents |
Payment term |
30%deposit,70% against copy of B/L |
| We can supply certificate SGS,ROHS etc. |
Spangle |
Regular Spangle, minimum Spangle,Large Spangle, Zero Spangle |
S320GD+Z galvanized steel sheet mechanical performances and coating adhesiveness:
|
Steel grade |
Mechanical performances |
Coating adhesiveness |
|||
|
Yield strength MPa≥ |
Tensile strength MPa≥ |
After breakage percent elongation %≥ |
Bending center diameter ( a=plate thickness) |
||
|
L0=80mm, b=20mm |
|||||
|
Nominal thickness mm |
|||||
|
≤0.7 |
>0.7 |
||||
|
S320GD+Z, S320GD+ZF |
320 |
390 |
15 |
17 |
3a |
S320GD+Z hot dip galvanized steel coating weight range:
Coating form |
Applicable surface structure |
Weight range of following coatings a g/m²(A/B) |
|
|
Zinc coating |
Zn-Fe alloy coating |
||
|
Equally coating |
Z, X, G, GX, N, R |
40/40~225/225 |
30/30~90/90 |
|
Differential coating b |
N, R |
30~150(each side) |
- |
|
a. 50 g/m² coating weight is equivalent to about 7.1µm. |
|||
S320GD+Z galvanized plate surface treatment:
1 Chromate treatment (L) |
Chromate treatment is a treatment with an aim to prevent white rusts formed on product surfaces during transportation and storage. |
| 2 Oiling (Y) | Oiling is to prevent white rusts formed on product surfaces during transportation and storage. |
| 3 Chromate treatment + oiling (LY) | This treatment with oiling after surface chromate treatment is to further avoid the forming of white rusts. |
S320GD+Z galvanized steel surface quality:
Code No. |
Features |
| FB(O3) | It is allowed for the existence of small erosion spots, dark spots, strip marks, minor chromate treatment defects and small zinc particles. |
| FC(O4) | No erosion spot is allowed. However, it is allowed for the existence of light impression, scratches, zinc flow ripple marks, minor chromate treatment defects in small range, while the other side must reach FB requirements at least. |
| FD(O5) | One side of relatively good quality must further restrict on defects, namely appearance quality after painting is not affected, and the other side must FB requirements at least. |
Hot-dip coated sheet

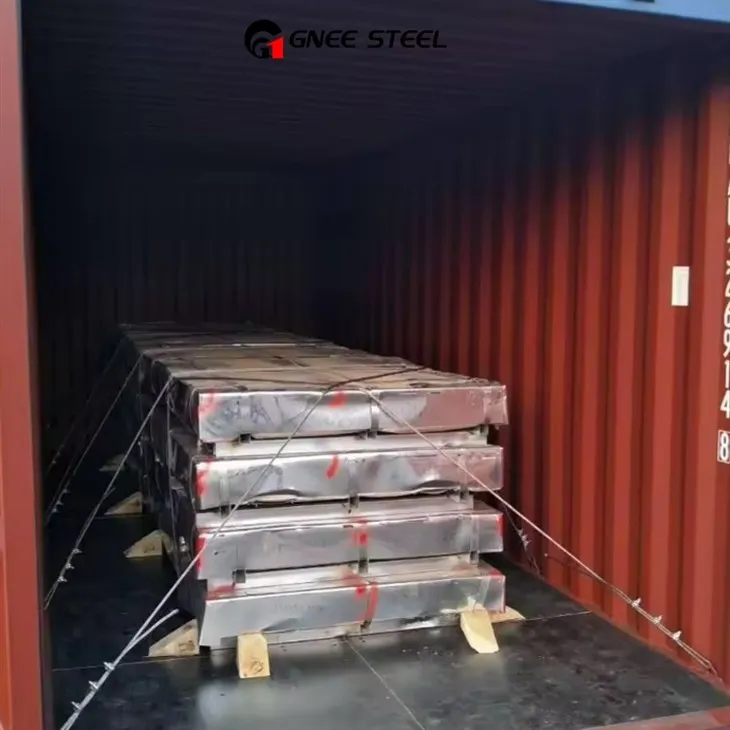

Packaging and transportation of hot-dip structural steel
Our Advantages
1) 16 years experience in steel industry.
2) Raw material checked,with good quality supplier.
3) Well stocked,professional service team.
4) Strict quality control in the production process and provision of MTC for each product.
5) Experienced technicians and engineers can meet the various needs of customers.
6) Before packing all products are cleaned and inspected.
FAQ
Q: What is the main market for your galvanized steel sheets?
A: Our sheets are mainly sold to the United States, Canada, Australia, Japan, Russia, Germany, France, Dubai, Brazil, Chile, India, Thailand, South Africa, Egypt, Nigeria, etc.
Q: How can I get the sample?
A: FREE samples are available for your checking and testing. And to get free samples, you needto send us you detailed receiving address (including post code) and your DHL /FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q:How can I get your price list?
A: Please send us your email or fax and order information - Quantity, Specification (steel type,thickness, width, surface finish), then I can send you the price list.
Q: Packing details?
A: We choose suitable package and reinforce for various steel products when loading and transport.
Thanks for your reading and looking forward to your inquiry!
