1.How is grain size defined? What is the typical grain size of cold-rolled steel sheets?
Grain size refers to the size of the individual tiny crystals (grains) within a polycrystalline structure of a metal. It is usually expressed as average grain size and can be observed using a metallographic microscope and rated according to standards such as ASTM E112.

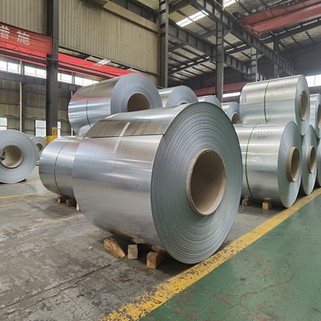

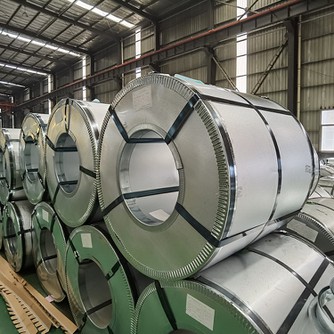

For cold-rolled coils (especially annealed products), the grain size range is roughly as follows:
Common Grain Size: Most commercially available cold-rolled sheets have a grain size between ASTM grades 7 and 10. Converted to average diameter, this is approximately 30 micrometers (0.030 mm) to 10 micrometers (0.010 mm).
Ultra-fine Grain: Some high-strength steels, through microalloying and controlled rolling and cooling, can have grains refined to ASTM grade 12 or higher (< 5 micrometers).
Coarse Grain: If the annealing temperature is too high or the annealing time is too long, the grains can grow to below ASTM grade 5 (> 60 micrometers), a situation that is generally avoided in industrial production.
2.What effect does grain size have on surface quality during stamping?
Formation Mechanism: When the grain size is large, the anisotropy of each grain (different deformation capabilities in different directions) becomes more prominent. During stamping, the macroscopic uniform deformation is actually the result of the coordinated deformation of countless grains. If the grains are too coarse, the number of grains participating in deformation is relatively small, and the deformation behavior of each grain will be reflected on the macroscopic surface.
Result: Under stress, grains with different orientations exhibit varying degrees of slip, leading to microscopic unevenness on the part surface, known as the orange peel effect. This not only affects the aesthetic appearance but also remains visible after painting, and in severe cases, can become stress concentration points, inducing cracking.
General Requirements: For automotive exterior body panels (such as doors and hoods) with extremely high surface quality requirements, the grain size is generally required to be relatively small, typically controlled to ASTM grade 7-8 or finer.
3.What are the effects of excessively fine or coarse grains on the strength and plasticity (elongation) of a material?
Excessively fine grains (e.g., ASTM grade 12 and above):
Strength (↑): Numerous grain boundaries severely impede dislocation movement, resulting in significantly increased yield strength and tensile strength.
Plasticity (↓): While fine grains can improve both strength and toughness, excessively fine grains lead to excessively rapid work hardening. During molding, the material exhibits high resistance to deformation, easily causing mold wear and severe springback, making it difficult to shape. For parts requiring complex molding, excessively fine grains are actually detrimental.
Medium grain size (e.g., ASTM grades 7-9):
Ideal balance: Sufficient strength to prevent deformation during use, along with good plasticity (elongation) and a low yield ratio, facilitating stamping.
Excessively coarse grains (e.g., ASTM grade 5 and below):
Strength (↓): Fewer grain boundaries reduce the resistance to dislocation movement, resulting in a softer material (lower yield strength).
Plasticity (↓): Although the elongation may not be low on the tensile curve, the ability to deform locally is poor. When coarse-grained materials are subjected to stress, deformation tends to concentrate on a few soft-oriented grains, leading to early necking and cracking, i.e., a decrease in uniform elongation.
4.For deep drawing (such as manufacturing beverage cans and automobile oil pans), are there any special requirements for grain size?
Absolute Dimensional Requirements: Deep-drawing steels (such as IF steel, interstitial steel) typically require appropriately coarsened grains (but never so coarse as to produce an orange peel effect). For example, the grain size of extra-deep-drawing cold-rolled sheets is often controlled to around ASTM grade 6-7. This is because appropriately coarser grains offer better plasticity, lower yield strength, and are more conducive to material flow in the die.
The Crucial Role of Uniformity: Deep drawing is most vulnerable to mixed grains (i.e., a mixture of large and small grains).
If the material contains both ASTM grade 5 coarse grains and ASTM grade 9 fine grains, deformation will be extremely uneven. Fine-grained regions have high strength and are difficult to deform, while coarse-grained regions have low strength and are easy to deform.
Under the intense stress conditions of deep drawing, this inhomogeneity will rapidly lead to excessive local thinning, eventually causing cracking at the coarse-grained boundaries or in the coarse-grained regions. Therefore, metallographic inspection of deep-drawing cold-rolled sheets has strict requirements regarding grain size variation.
5.In actual production, how can we obtain the ideal grain size through process control?
Cold rolling reduction: The greater the cold rolling deformation, the more severe the grain breakage, the higher the stored energy, and the greater the driving force for recrystallization. This usually results in finer grains after recrystallization. If the reduction is too small, the driving force is insufficient, which can easily lead to the formation of coarse grains.
Annealing temperature and time (most critical):
Low temperature, short time: Recrystallization has just been completed, and the grains are very fine.
High temperature, long time: Grain growth occurs (grain engulfment mechanism). To obtain grains of a specific size, precise control of heating temperature and holding time is required in a continuous annealing line or bell-type furnace.
Alloying elements and second-phase particles:
Adding microalloying elements (such as Nb, Ti) forms fine carbonitride particles that act like "nails" anchoring at grain boundaries, effectively preventing grain growth. Even with higher annealing temperatures, fine grains can be obtained. This is the foundation for producing fine-grained high-strength steel.
For deep-drawing steel, these precipitates need to be controlled to avoid excessively hindering grain growth, in order to obtain appropriately coarse grains with good formability.
Leveling (Quenching and Tempering): The final process-leveling-while primarily aimed at improving shape and eliminating yield plateaus, also introduces a small number of dislocations within the grains, fine-tuning the final performance, but generally not significantly altering the grain size.
