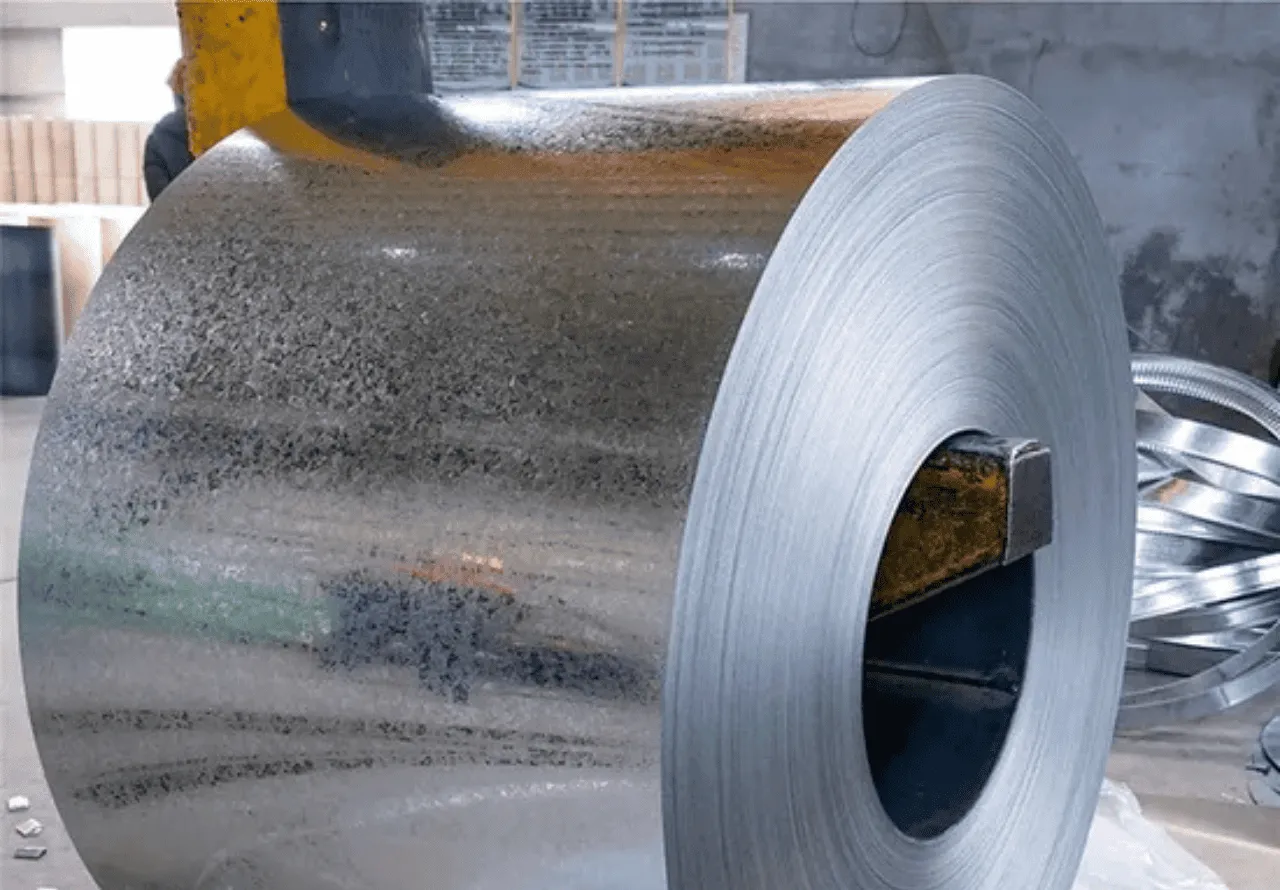

What Is Galvanized Steel?
Galvanized steel refers to carbon steel coated with a protective layer of zinc to prevent corrosion. The zinc layer shields the base steel from moisture, oxygen, and pollutants, significantly extending the service life of the product.
Galvanization is mainly achieved through the hot-dip process, where steel is immersed in molten zinc at approximately 450°C. This creates a metallurgical bond between zinc and steel, forming a multi-layered protective structure that offers both physical and electrochemical protection. When surface damage occurs, zinc will sacrificially corrode before the steel, preserving the integrity of the structure.
Compared with ordinary cold rolled steel, galvanized steel demonstrates far superior resistance to rust, making it indispensable in construction, transportation, industrial equipment, infrastructure, and consumer appliances.Among many commercial grades, DX51D + Z160 galvanized steel coil is particularly valued for projects requiring enhanced corrosion resistance without sacrificing formability or economic efficiency.
Technical Understanding of DX51D + Z160
DX51D is a cold forming grade specified in EN 10346, offering excellent mechanical consistency and surface quality. It is suitable for bending, roll forming, stamping, and moderate deep drawing.
The designation Z160 indicates a zinc coating mass of 160 g/m² on both sides of the steel strip, delivering stronger corrosion resistance than standard coatings such as Z100 or Z120.
Chemical Composition of DX51D Steel
| Element | C (max) | Mn (max) | P (max) | S (max) | Ti (max) |
|---|---|---|---|---|---|
| % | 0.12 | 0.60 | 0.10 | 0.045 | 0.30 |
Mechanical Properties of DX51D
| Property | Value |
|---|---|
| Yield Strength | ≥ 140 MPa |
| Tensile Strength | 270–500 MPa |
| Elongation A80 | ≥ 22% |
| Formability | Excellent |
| Weldability | Very Good |
This mechanical balance ensures that DX51D + Z160 performs reliably in both structural and aesthetic applications.
Advantages of Z160 Zinc Coating
Z160 coating provides a thicker zinc layer compared with standard commercial coatings, significantly improving long-term corrosion resistance in outdoor and semi-industrial environments.
Key benefits include:
- Longer service life in humid and coastal climates
- Reduced maintenance requirements
- Better resistance to abrasion during forming and installation
- Higher tolerance to mechanical damage during transport
Typical service life in outdoor exposure can exceed 15–20 years under normal environmental conditions.
Common Specifications of DX51D + Z160 Galvanized Steel
Dimensional Range
| Item | Range |
|---|---|
| Thickness | 0.15 – 3.5 mm |
| Width | 600 – 1500 mm |
| Coil Weight | 3 – 25 MT |
| Surface Type | Regular Spangle / Minimized Spangle / Zero Spangle |
| Surface Treatment | Chromated / Oiled / Passivated / Dry |
Processing & Supply Capabilities
| Service | Available |
|---|---|
| Slitting | Yes |
| Cut-to-Length | Yes |
| Profiling | Yes |
| Punching | Yes |
| Painting / Coating | Optional |
| Packaging | Export seaworthy |
Comparison of Zinc Coating Levels
| Coating Grade | Zinc Mass (g/m²) | Corrosion Protection Level | Typical Use |
|---|---|---|---|
| Z120 | 120 | Standard | General indoor/outdoor |
| Z160 | 160 | Enhanced | Structural & outdoor |
| Z180 | 180 | High | Heavy construction |
| Z275 | 275 | Maximum | Coastal & industrial |
Z160 strikes an optimal balance between durability and cost control for many international projects.
GNEE STEEL provides stable production of DX51D + Z160 galvanized steel with consistent zinc coating thickness, uniform mechanical properties, and excellent surface quality. Each coil undergoes strict quality inspection including coating mass measurement, tensile testing, and surface defect analysis before shipment.
With complete export packaging, fast delivery schedules, and professional technical support, GNEE STEEL helps global customers reduce project risks and achieve long-term performance goals.
