What is dx51 material equivalent to?
SGCC
DX51D is a European standard, galvanized with 51 steel coil raw materials, equivalent to SGCC. DX51D refers to the bending and forming grade galvanized steel coil sheet, the steel grade serial number is 51, with low carbon steel as the base material.
What is the difference between DX51D and DX52D?
DX51D and DX52D are both hot-dip galvanized steels used for cold forming. DX52D has higher ductility and better elongation than DX51D. DX52D is more suitable for complex forming processes that require greater flexibility, while DX51D is used for standard forming applications
What is DX51D az150 material?
It is made of galvanized aluminum plated steel (55% aluminum, 43% zinc, 1.6% silicon). It has better corrosion resistance than galvanized steel. It is degreased, phosphatized, complexed and coated with organic paint.
What is the spec of DX51D?

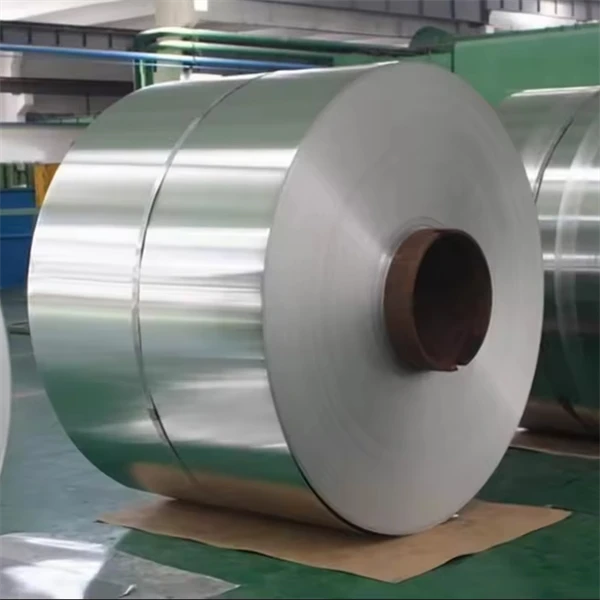

DX51D steel products are produced in coils 0.4-1.6 mm thick and 950-1250 mm wide. The inner diameter of the coil is 600±20 mm and outer diameter is up to 1300 mm. Coil weight is up to 8 tons. Coils are supplied with cut edges (mill edges are also possible).
What does AZ150 mean?
ZN/AL COATING TECHNOLOGY (AZ150) ZINCALUME® steel comprises coating composition of 43.5% zinc, 55.0% aluminium and 1.5% silicon. The minimum coating mass of 150 g/m2 (AZ150) offers superior corrosion performance under varied conditions, when compared with other metallic coated steel.
How thick is AZ150 coating?
AZ 150AZ150 coating single surface coating thickness is 18 microns, double surface coating thickness is 36 microns. This steel's coating alloy is made up of 55% aluminium, 43.4% zinc, and 1.6% silica. The coating of this steel serves as general corrosion's passivating barrier.
