What DX51D+Z275 Actually Specifies

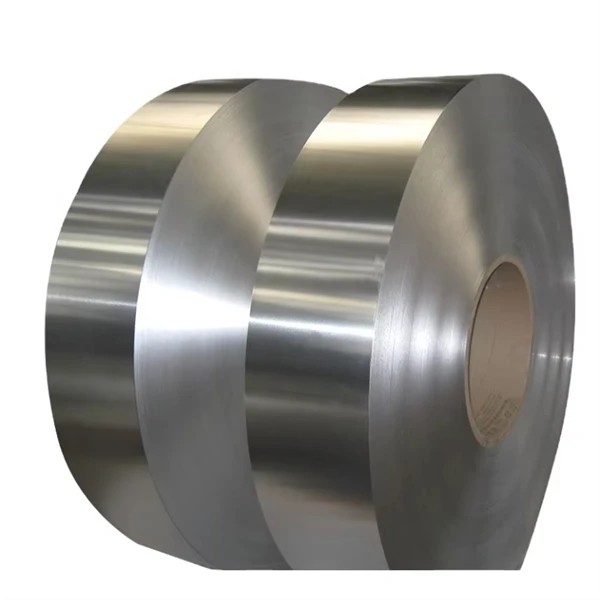

DX51D+Z275 is a continuously hot-dip zinc coated steel sheet designation read in two parts. DX51D identifies the substrate: a drawing-quality, low-carbon steel for cold forming, defined in EN 10346. The suffix Z275 states the coating: a zinc layer whose total mass is 275 g/m2 across both faces, applied by passing the strip through a molten zinc pot.

Because the 275 g figure is a two-face total, each face carries about 137.5 g/m2, which at a zinc density of 7.14 g/cm3 works out to roughly 19 micrometres of zinc per side. That is the practical difference between a premium coating and an economy one: a Z100 designation delivers only 50 g/m2 per side, about 7 micrometres, and is normally reserved for parts that will stay indoors or be painted and kept dry. Z275 is specified where a long, largely unpainted service life is required and where cut edges must stay protected.

Coating designation Total mass, both faces Mass per side Approx. thickness per side
Z100 100 g/m2 50 g/m2 7 micrometres
Z140 140 g/m2 70 g/m2 10 micrometres
Z275 275 g/m2 137.5 g/m2 19 micrometres

Dimensions and Coil Parameters Across the 0.12-4.0 mm Range

The 0.12 mm to 4.0 mm span covers two very different product families. Light gauges below about 0.4 mm are produced on continuous galvanizing lines running thin cold-rolled substrate and are used for cable trays, ducts, panels and packaging. Heavier gauges of 1.5 mm and above move toward hot-rolled substrate, roof decking, purlins and heavier fabricated parts.

Parameter Range
Thickness 0.12-4.0 mm, subject to grade and coil size
Width 600-1500 mm as rolled; narrower widths by slitting
Coil inner diameter 508 mm or 610 mm
Coil outer diameter Up to about 1300 mm
Coil weight Up to 8 t
Edge condition Cut edge standard; mill edge available
Spangle Regular or zero spangle

How a Continuous Hot-Dip Galvanizing Line Produces Z275

Cold-rolled coil is uncoiled and welded into a continuous strip.

Alkaline cleaning removes rolling oil and contamination.

Furnace annealing develops the required microstructure and surface for coating adhesion.

The strip enters the zinc pot at controlled temperature; coating mass is set by gas knives wiping the still-molten zinc.

Cooling, then skin pass rolling and tension levelling to set flatness and surface texture.

Chromate passivation, oiling or anti-finger print treatment, then inspection, recoiling and packaging.

Reaching 275 g/m2 total means the wiping stage must be tuned to a lower knife pressure than for Z100, and pot chemistry has to be held within tight limits so the coating stays uniform edge to edge. Heavier coatings are more demanding to control, which is why Z275 coils are normally quoted with a coating mass tolerance rather than a single nominal figure.

Spangle, Surface Finish and Formability After Coating

Regular spangle shows the classic crystalline zinc pattern and is the default for unpainted structural and roofing use.

Zero spangle is produced by suppressing crystal growth so the surface is smooth and uniform, giving better paint appearance and lower friction in forming.

Skin pass controls roughness and prevents stretcher strain marks during subsequent forming.

Formability is governed mainly by the DX51D substrate. A heavier coating bends without flaking in normal folding and profiling, but very tight radii or severe draws call for a drawing-quality grade with a suitable coating and, where necessary, a thinner coating to reduce through-thickness stress.

Zinc Versus Aluminium-Zinc Coatings

Hot-dip zinc is not the only metallic coating, and the two families are often compared for the same roof or cladding application. A 55 percent aluminium-zinc alloy coating is designated AZ in EN 10346 and is covered in ASTM A792; the alloy is approximately 55 percent aluminium, 43.4 percent zinc and 1.6 percent silicon, and it combines the barrier behaviour of aluminium with the sacrificial protection of zinc.

Property Zinc coating, Z275 Aluminium-zinc coating, AZ150
Coating composition Essentially pure zinc About 55% aluminium, 43.4% zinc, 1.6% silicon
Total coating mass 275 g/m2 150 g/m2
Thickness per side About 19 micrometres About 20 micrometres
Cut-edge protection Sacrificial protection is strongest Some sacrificial protection, mainly barrier
Heat reflectivity Moderate High, useful for roofing and heat shields

At 150 g/m2 total, AZ150 still gives roughly 20 micrometres per side because the alloy is lighter than pure zinc per unit thickness. Service life under the same exposure is therefore driven by the environment and by coating chemistry rather than by mass alone, and doubling or halving a coating mass changes time to first corrosion proportionally, not linearly in every climate.

Frequently Asked Questions

Q: What does DX51D+Z275 mean?
DX51D is the EN 10346 drawing-quality cold-forming steel substrate and Z275 is a hot-dip zinc coating of 275 g/m2 total on both faces.

Q: How thick is a Z275 coating per side?
About 137.5 g/m2 per side, which converts to roughly 19 micrometres of zinc at a density of 7.14 g/cm3.

Q: What is AZ150 and how thick is it?
AZ150 is a 55 percent aluminium-zinc alloy coating of 150 g/m2 total, giving approximately 20 micrometres per side, specified under EN 10346 and ASTM A792.

Q: Does a heavier zinc coating reduce forming performance?
Slightly, because the coating is softer than the steel beneath it. Normal bending and profiling are unaffected; severe draws are better served by a drawing-quality grade with a coating matched to the operation.

Q: Is DX51D suitable for structural applications?
DX51D is a forming grade, not a structural one. Load-bearing designs should use structural grades such as S250GD or S350GD under EN 10346 or an equivalent standard.

Q: How are these coils packed for shipment?
Coils are wrapped in moisture-barrier film with inner and outer ring protection, strapped, and shipped eye-to-sky or eye-to-wall depending on handling equipment at the destination.
