Galvanized Steel
Wondering how S550GD galvanized steel plate compares to other grades? You're in the right place. As an experienced direct factory, GNEE Steel provides detailed comparisons between S550GD Galvanized Steel Plate and common alternatives. In this guide, we'll help you choose the right grade with performance data and 2026 pricing.

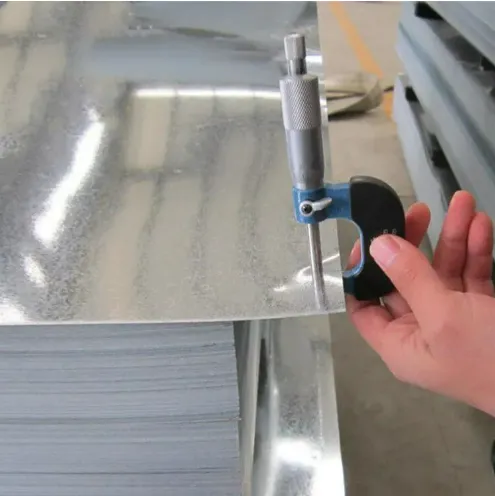

Galvanized Steel Plate
S550GD galvanized steel plate is a high-strength grade in the EN 10346 series. It offers the highest yield strength (≥550MPa) among standard galvanized structural steel grades, making it ideal for heavy-load applications.
Other common galvanized grades include S280GD, S350GD, and S420GD. Each grade differs in strength, formability, and cost, making them suitable for specific applications.
S550GD vs. S350GD Galvanized Steel Plate: Key Differences
S350GD is a widely used medium-strength galvanized grade. Below is a comparison with S550GD Galvanized Steel Plate:
| Feature | S550GD Galvanized Steel Plate | S350GD Galvanized Steel Plate |
|---|---|---|
| Yield Strength | ≥550 MPa | ≥350 MPa |
| Tensile Strength | 600-730 MPa | 450-570 MPa |
| Formability | Good (suitable for basic bending) | Excellent (ideal for complex forming) |
| Weight Efficiency | Higher (thinner plates for same load) | Lower (requires thicker plates) |
| 2026 Price | $860-$960/ton | $750-$850/ton |
| Best Applications | Heavy-load structures, bridges, machinery | Light framing, roofing, general construction |
S550GD is preferred for high-stress applications, while S350GD is more cost-effective for light-duty use.
S550GD vs. S420GD Galvanized Steel Plate: Performance Comparison
S420GD offers a balance between strength and formability. Compare it with S550GD Galvanized Steel Plate:
| Performance Metric | S550GD Galvanized Steel Plate | S420GD Galvanized Steel Plate |
|---|---|---|
| Yield Strength | 550 MPa minimum | 420 MPa minimum |
| Impact Toughness | 27 J (-40°C) minimum | 27 J (-40°C) minimum |
| Weldability | Good (no preheating for thin plates) | Very good (excellent weldability) |
| Corrosion Resistance | Equal (same zinc coating options) | Equal (same zinc coating options) |
| Application Suitability | Heavy machinery, infrastructure | Medium-load structures, container parts |
| Cost Difference | 15-20% higher | More economical for moderate loads |
S550GD provides 31% higher yield strength than S420GD, making it suitable for more demanding applications.
Chemical Composition Comparison of Galvanized Grades
The chemical composition differences affect strength and performance:
| Element | S550GD (Max, %) | S350GD (Max, %) | S420GD (Max, %) |
|---|---|---|---|
| Carbon (C) | 0.18 | 0.16 | 0.18 |
| Manganese (Mn) | 2.00 | 1.60 | 1.80 |
| Silicon (Si) | 0.50 | 0.50 | 0.50 |
| Phosphorus (P) | 0.030 | 0.030 | 0.030 |
| Sulfur (S) | 0.025 | 0.025 | 0.025 |
Higher manganese content in S550GD contributes to its superior strength.
Mechanical Properties Comparison Table
This table highlights the strength differences between galvanized grades:
| Property | S550GD | S350GD | S420GD |
|---|---|---|---|
| Yield Strength (ReH) | ≥550 MPa | ≥350 MPa | ≥420 MPa |
| Tensile Strength (Rm) | 600-730 MPa | 450-570 MPa | 500-630 MPa |
| Elongation (A80mm) | ≥12% | ≥14% | ≥13% |
| Hardness (HB) | 180-220 | 140-180 | 160-200 |
S550GD's higher strength comes with slightly reduced elongation compared to lower grades.
When to Choose S550GD Galvanized Steel Plate
Select S550GD Galvanized Steel Plate for these scenarios:
Projects requiring high strength-to-weight ratio (reduces material usage and transportation costs)
Load-bearing structures like bridge girders, high-rise building columns, and crane beams
Outdoor applications with heavy loads and exposure to harsh weather
Machinery frames and components that dynamic forces
Projects where long service life (25+ years) and low maintenance are priorities
For light-duty applications or complex forming, lower grades like S350GD may be more suitable.
S550GD Galvanized Steel Plate outperforms lower grades in strength and load-bearing capacity, making it ideal for demanding structural applications. While it comes at a premium price, its weight efficiency and durability often provide long-term cost savings.
GNEE Steel offers all galvanized grades, with expert advice to help you select the right product for your project. Contact GNEE Steel today to get a detailed comparison report and quotation for S550GD Galvanized Steel Plate!
Click here to get your 2026 latest price list !
