Products Description
PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color-coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface and then baked and solidified. The color-coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, the Furniture industry, and the transportation industry. The coatings used for color-coated steel coils are based on the environment in which the resin is selected, such as polyester silicon-modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like.
Color-coated galvalume steel coil PPGL coil
Products featuresParameter information |
|
|
Name |
Pre-painted galvalume steel coil |
|
Grades |
SGLCC,DX51D,DX52D |
|
Thicknesses |
0.12MM-1.5MM |
|
Height |
600MM-1250MM |
|
Lengths |
600MM-6000MM |
|
Zinc coating |
AZ15-AZ275 |
|
Paintwork |
PE,HDP,SMP,PVDF |
|
Paint Film |
15/5UM,17/5UM,20/5UM,25/7UM,20/10UM,25/10UM |
|
RAL |
Based on Raul's color card number/Customer-specified color number |
|
Weight per roll |
3-5T/Roll,5-7T/Roll |
|
Certificate |
SGS |

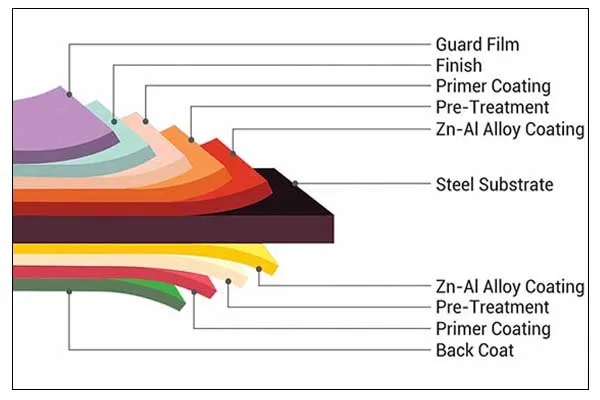

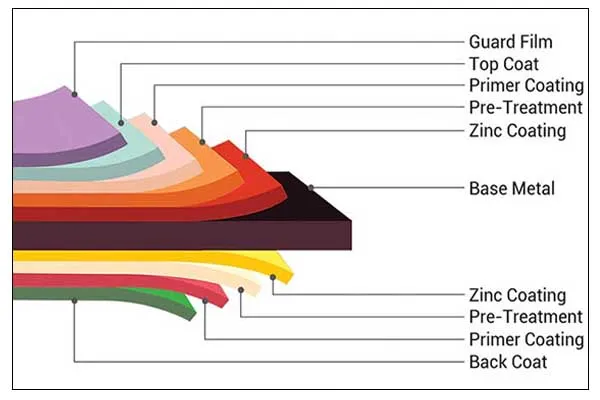

Diagram of Steel Surface Coating And Layers
 |
 |
GNEE
Amidst the vast land of China and the majestic Taihang Mountains lies Anyang, Henan Province, located on the eastern foothills of the Taihang mountain range. It is one of the eight ancient capitals of China and home to an outstanding steel supply chain enterprise – GNEE GROUP.
GNEE GROUP, established in 2008 with a registered capital of 5 million yuan, has grown into a comprehensive steel supply chain enterprise after more than a decade of hard work and perseverance. It has five subsidiaries located in different countries and regions, including Anyang, Tianjin, Hong Kong, Zhengzhou, and Singapore, and its influence has reached out around the world.
FAQ
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.
Q: What should provide to make custom transformer?
A: Technical drawing and specification documents are the best, or you can list key parameters for designing.
Q: Could I have your catalog and price list?
A: Price may change based on material market. Welcome to contact for accurate price via Made-in-China or company official website.
