Products Description

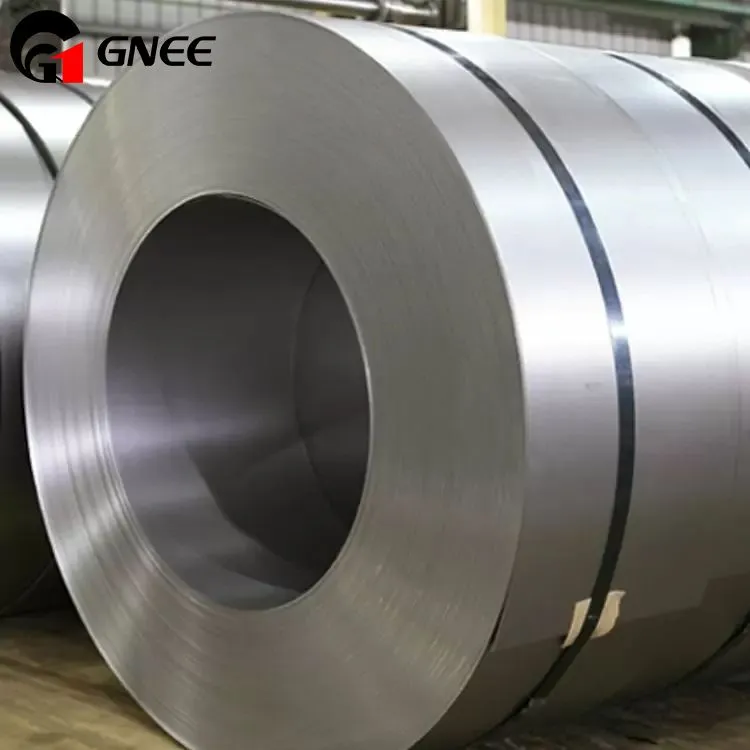

The main purpose of cold-rolled oriented silicon steel strip is for transformer manufacturing, so it is also called cold-rolled transformer silicon steel. Compared with cold-rolled non-oriented silicon steel, oriented silicon steel has strong magnetic directionality; it has superior high magnetic permeability and low loss characteristics in the rolling direction of easy magnetization. The iron loss of the oriented steel strip in the rolling direction is only 1/3 of the transverse direction, the magnetic permeability ratio is 6:1, and the iron loss is about 1/2 of the hot rolled strip, and the magnetic permeability is 2.5 times of the latter .
High magnetic induction cold-rolled silicon steel strips are all single-oriented steel strips, which are mainly used in the manufacture of electromagnetic components such as transformers and chokes in the telecommunication and instrument industries. There are two main characteristics of its application. One is that under the condition of low current, that is, weak magnetic field, the material is required to have high magnetic properties in the range of weak magnetic field, that is, high μ0 value and high B value; the second feature is the frequency of use High, usually above 400Hz, even up to 2MHz. In order to reduce the eddy current loss and the effective permeability under an alternating magnetic field, a thin strip of 0.05-0.20mm is generally used.
Products features
| Product | Oriented silicon steel |
| Specification | Section shape: coil,strip,plate,sheet |
| Thickness: 2.0-6.0mm;customizable | |
| Width: 1219-2500mm;customizable | |
| Standard | ISO/ RoHS/ IBR/ AISI/ ASTM /GB/ EN / DIN /JIS |
| Material | 30Q130,B23P090,B30G120,B30G130,B35A300,35AW300,B50A250,B50A310 |
| Weight | 3-8 Tons |
| Package | ID:508-610mm |
| OD:Max 2000mm | |
| Min order | 5 tons, more quantity price will be lower |
| Payment terms | T/T, L/C |
| Deliver time | Within 7-30 days after deposit,base on quantity. |
| Others | We can do special orders as customer's requests. |
| We also can provide all kinds of steel coil. | |
| All the production process are made under the ISO9001:2008 strictly |
GNEE
Amidst the vast land of China and the majestic Taihang Mountains lies Anyang, Henan Province, located on the eastern foothills of the Taihang mountain range. It is one of the eight ancient capitals of China and home to an outstanding steel supply chain enterprise – GNEE GROUP.
GNEE GROUP, established in 2008 with a registered capital of 5 million yuan, has grown into a comprehensive steel supply chain enterprise after more than a decade of hard work and perseverance. It has five subsidiaries located in different countries and regions, including Anyang, Tianjin, Hong Kong, Zhengzhou, and Singapore, and its influence has reached out around the world.
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.
Q: What should provide to make custom transformer?
A: Technical drawing and specification documents are the best, or you can list key parameters for designing.
Q: Could I have your catalog and price list?
A: Price may change based on material market. Welcome to contact for accurate price via Made-in-China or company official website.
