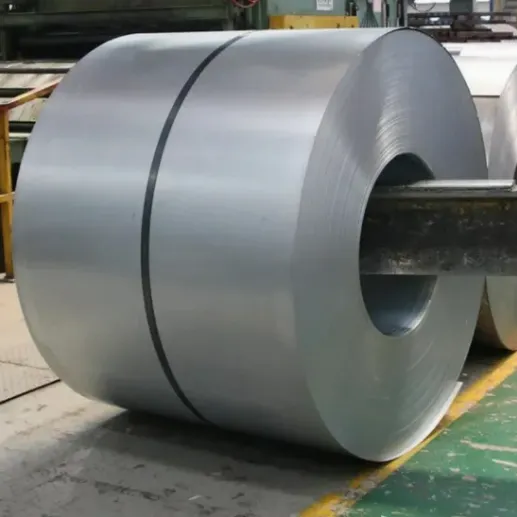

Cold rolled steel Coil
DC01 steel is a cold-rolled, low-carbon steel defined according to European standard EN 10130. It belongs to the DC (cold-drawn) steel family, where "DC" denotes suitability for cold forming, and "01" designates the basic quality grade. DC01 is an unalloyed steel whose clean surface and uniform microstructure make it particularly suitable for secondary processes such as coating, painting, electroplating, and welding. However, DC01 lacks inherent corrosion resistance.
DC01 steel is a low-carbon, cold-rolled steel grade specified in the EN 10130 standard, suitable for cold-rolled flat products made from unalloyed low-carbon steel. "DC" stands for "Drawing Cold," indicating its suitability for cold forming applications; "01" represents the base grade in the series, offering standard formability and surface quality suitable for general engineering and manufacturing applications.
Properties according to DIN EN 10 152
Steel type
| Short designation | VDA239-100* | Surface finish | Material number |
| DC01 | CR1 | +ZE | 1.0330 |
* Comparative grade, therefore slight deviations from DIN EN values possible
.
DC01+ZE | 1.0330: Mechanical properties (transverse)
| Yield strength R1) MPa e max. | Tensile strength Rm MPa | Elongation at fracture2) % A80 | Anisotropy r903)4) min. | Strain hardening exponent n903) min. |
| 280 | 270–410 | 28 | - | - |
DC01+ZE | 1.0330: Chemical composition (heat analysis)
| Percentage by weight % max. | ||||
| C | P | S | Mn | Ti |
| 0.12 | 0.045 | 0.0 | 0.60 | - |
DC01 vs. DC05: What Are the Main Differences?
| Feature / Property | DC01 | DC05 | Difference |
|---|---|---|---|
| Formability | Medium | Very High | DC05 is more suitable for deep drawing |
| Carbon Content | Slightly higher | Lower | DC05 has better ductility |
| Cost | Lower | Higher | DC01 is more economical |
| Application Complexity | Normal forming | Complex / deep drawing | DC05 handles severe deformation |
| Surface Quality | Good | Excellent | DC05 preferred for visible surfaces |
Summary:
DC01 is typically used for general forming, while DC05 is preferred when deep drawing and highly complex shapes are required.
