EN 10130 Cold Rolled Steel
EN 10130 is a European standard that specifies requirements for cold-rolled low-carbon steel flat products for cold forming. Published by the European Committee for Standardization (CEN), it applies to steel sheets and strips used in applications where good formability, surface quality, and consistent properties are essential, such as automotive, appliances, and construction.
DC01: General purpose - suitable for simple bending and mild forming
DC03: Drawing quality - suitable for shallow drawing
DC04: Deep drawing quality - suitable for complex deep drawing
DC05: Special deep drawing quality - suitable for severe deep drawing
DC06: Extra deep drawing quality - suitable for most demanding forming
Key Features
Type: Cold Rolled Low Carbon Steel Sheet
Grades: DC01, DC03, DC04, DC05, DC06
Finish: Excellent surface quality for painting & coating
Formability: High – suitable for bending, deep drawing, and stamping
Thickness Tolerance: Very precise
Applications: Automotive panels, appliances, furniture, and general forming
Weldability: Good – suitable for all common welding methods
Standards: Supersedes DIN 1623-1
Product Details
|
Product name |
Colled Rolled Steel Sheet/Plate/Coil |
|||||||
|
Grade |
DC01,DC03,DC04,DC05,SPCC,ST12,ST13,ST14,ST15,ST16etc |
|||||||
|
Surface |
Bright,Matt |
|||||||
|
Processing Service |
Bending,Welding,Decoiling,punching,Cutting |
|||||||
|
Thickness |
0.30mm-3.0mm |
|||||||
|
Width |
800mm-1500mm or asCustomerrequired |
|||||||
|
Standard |
ASTM, GB, EN, BS, JIS, Etc |
|||||||
|
Usage |
Automobile manufacturing, home appliances (washing machines, refrigerator shells), office furniture, computer chassis and cabinets, general stamping parts |
|||||||
|
PAYMENT TERMS : |
1.100% irrevocable L/C at sight. |
|||||||
|
Packing |
1.Big OD:in bulk |
|||||||
|
Delivery Time |
Delivered within 3-7 days after the receipt of deposit |
|||||||
EN 10130 Equivalent Standards
| EN 10130 Grade | Equivalent (ASTM) | JIS (Japan) | ISO |
|---|---|---|---|
| DC01 | ASTM A1008 CS Type A/B | SPCC | ISO 3574 CR1 |
| DC03 | ASTM A1008 DS Type A/B | SPCD | ISO 3574 CR2 |
| DC04 | ASTM A1008 DDS | SPCE | ISO 3574 CR3 |
| DC05 | - | SPCF | ISO 3574 CR4 |
| DC06 | ASTM A1008 EDDS | SPCG | ISO 3574 CR5 |
Request a Free Quote Within 24 Hours.
EN 10130 – Chemical Composition
| Grade | C | Mn | P | S |
|---|---|---|---|---|
| DC01 | 0.10 | 0.45 | 0.045 | 0.045 |
| DC03 | 0.08 | 0.45 | 0.045 | 0.045 |
| DC04 | 0.06 | 0.40 | 0.030 | 0.030 |
| DC05 | 0.05 | 0.35 | 0.025 | 0.025 |
| DC06 | 0.02 | 0.25 | 0.020 | 0.020 |
EN 10130 – Mechanical Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % (L0 = 80 mm) |
|---|---|---|---|
| DC01 | ≤ 280 | 270–410 | ≥ 28 |
| DC03 | ≤ 240 | 270–370 | ≥ 34 |
| DC04 | ≤ 200 | 270–350 | ≥ 38 |
| DC05 | ≤ 180 | 270–330 | ≥ 40 |
| DC06 | ≤ 120 | 270–330 | ≥ 42 |
Applications

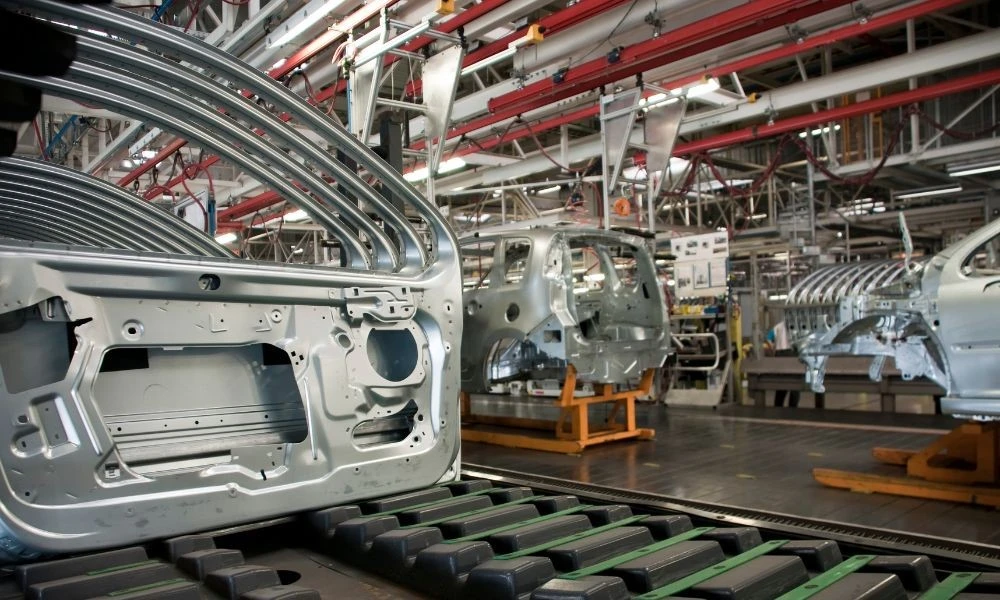

1.Automotive body panels
2.Home appliances (e.g., washing machines, refrigerators)
3.Office and household furniture
4.Electrical cabinets and enclosures
5.Metal doors, shelving, and filing cabinets
6.General stamped or drawn components
Packaging and Shipping
For export, galvanized steel coils/sheets are wrapped with VCI paper and moisture-proof polyethylene, packed on ISPM-15 certified wooden pallets or steel skids, secured with steel straps, and protected with edge protectors. Anti-fingerprint or oiled surfaces are additionally interleaved. Labels include grade, coating weight, dimensions, and heat number for safe transport.

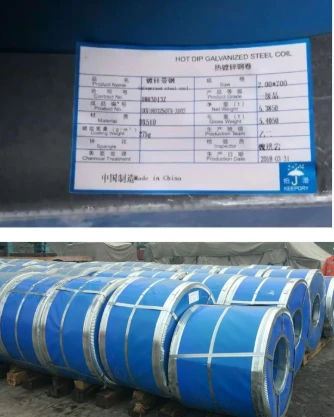

Export Case Studies
GNEE exports 700 tons of galvanized steel coils to Bangladesh.
FAQ
1. Can cold rolled steel be galvanized?
Yes. Cold rolled steel is widely used as the base material for hot-dip galvanized and electro-galvanized steel products.
2. What surface finishes are available?
Common finishes include bright, matte, oiled, dry, and customized surface treatments.
3. How is cold rolled steel packaged?
Products are securely packed with waterproof paper, steel sheets, edge protection, steel straps, and wooden pallets when required.
4. Can you provide custom sizes?
Yes. We offer customized thickness, width, length, slit coils, and cut-to-length sheets.
5. What quality standards do your products meet?
Our products comply with international standards such as EN 10130, JIS G3141, ASTM, and other customer specifications.
