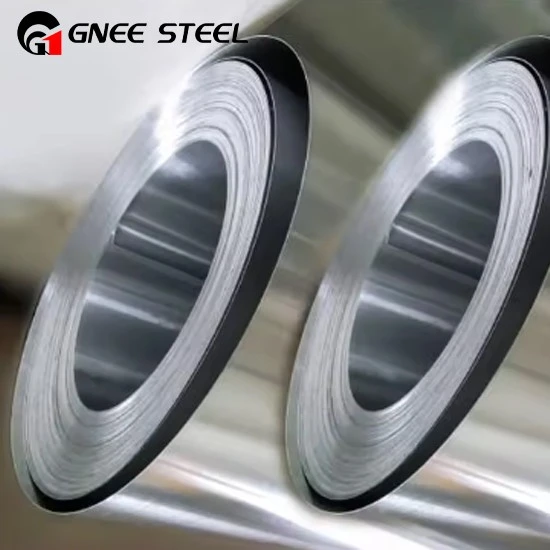

Galvalume steel coils, also known as Aluzinc steel coils, are a type of coated steel product that combines the corrosion resistance of aluminum with the galvanic protection of zinc.
Galvalume steel is made by coating a steel substrate with a mixture of aluminum, zinc, and silicon. The coating is applied through a continuous hot-dip process, where the steel coils is immersed in a molten bath of the coating material. The coating composition typically consists of approximately 55% aluminum, 43.5% zinc, and 1.5% silicon.
| Grade | Tension Test | ||
| MPa Yield strength | MPa Tensile strength | Elongation % No less than | |
| Aeomm | |||
| DX51D+AZ | 190~360 | 270-500 | 22 |
| DX52D+AZ | 140-300 | 270-420 | 26 |
| DX53D+AZ | 140-260 | 270-380 | 30 |
| DX54D+AZ | 120~220 | 260~350 | 3 |
Surface Treatment of Galvalume Steel coils
| Item | Classification | Symbol |
| Coating type | Al-Zn alloy | AZ |
| Surface finish | Regular spangle | R |
| Minimized spangle | M | |
| Skin passed | S | |
| Surface treatment | Chromate passivated | c |
| Non-chromate passivated | C5 | |
| Chromate passivated + oiling | CO | |
| Non-chromate passivated+oiling | CO5 | |
| Anti-fingerprint | N | |
| Non-chromate anti-fingerprint | N5 | |
| Non-chromate high weather resistance anti-fingerprint | NW | |
| Oiling | 0 | |
| No treatment | U |
Galvalume steel
Feature of galvalume coil
Galvalume steel coil has good corrosion resistance. It can balance the protective and repair effects of zinc with the anti-corrosion effect of aluminum, extending the service life of steel sheets.
Galvalume steel coil has relatively good heat resistance and will not change color when exposed to temperatures of around 316 degrees for a long time. It still has good antioxidant properties at a temperature of 677 degrees.
Application of galvalume steel
Unique protective characteristics and affordability make GNEE's galvalume steel coil and sheet ideal for an extensive range of uses including but not limited to:
- Residential and commercial exterior building products
- Roofing
- Siding
- Cabinetry
- Air-conditioning and heating equipment
- Electrical boxes
- Farm equipment and machinery
- Furnace parts
- Guide rails
- Appliances
benefits of galvalume steel
- Handles the heat: Performs well above 300 °C
- Protects against corrosion: An aluminum layer shields the steel's interior
- Easy to paint: Galvalume steels offers the perfect adhesiveness to make your finish attractive
Packaging&shipping
Exhibition photos
customer visit
GNEE Teams
GNEE Steel always adheres to "quality goes first". We have a strict quality inspection system with 20+ professional inspectors and various sophisticated testing instruments. We perform various tests, such as punching test, bending test, cross-cut test, writing and erasing test, coating thickness test, etc. Third-party quality tests, such as SGS, BV, CE, etc., are also acceptable. More than that, we have a series of advanced equipment to offer further processing services, such as cutting, slitting, profiling, punching, bending, etc.
