Thickness and Material Deformation
Thickness changes the mechanical response of the sheet in two opposing directions. A thick plate has a large moment of inertia, so it strongly resists bending and tension, springs back more after forming, and needs more force. In deep drawing, the material experiences high flow resistance at the die entrance, and cracking becomes more likely unless the draw is carefully designed. A thin sheet bends and stretches easily and flows well, so it suits deep drawing and complex forming. But an excessively thin sheet has poor rigidity: it becomes unstable under compression, wrinkles during drawing, and tears easily where stress concentrates. The practical result is that each part has a thickness window within which it forms cleanly.
Thickness and Die Design
Die clearance is the most direct link between thickness and tooling. The clearance between punch and die is normally designed as a percentage of material thickness, commonly 5% to 10% per side for blanking dies depending on material and precision class. If the incoming sheet varies in thickness beyond the tolerance, the effective clearance changes: too small a clearance accelerates die wear or causes chipping, and too large a clearance increases burrs and reduces part precision. Stamping forces are also roughly proportional to thickness: blanking force, drawing force and bending force all rise with gauge, so thicker sheet requires a larger press and a more robust die, increasing both cost and energy consumption.
Thickness and Part Quality
Thickness uniformity affects dimensional accuracy directly. Significant gauge variation within a coil or between batches produces stamped parts of inconsistent dimensions and causes assembly problems. On the surface, thin sheet undergoes more severe tensile deformation on the outside of bends, so it is more sensitive to scratches and micro-cracks that can open during forming. For edge-filling processes such as flanging and ribbing, where material must flow into corners, thin sheet fills better and produces sharper edges, while thick sheet needs generous corner radii.
The Role of r-Value and n-Value
Thickness should never be considered alone; the material's anisotropy and hardening behavior are decisive.
Plastic Strain Ratio (r-Value)
The r-value measures the sheet's resistance to thinning. A high r-value means the material thins less during stretching and flows within the plane of the sheet, which gives better deep-drawing performance. For deep-drawn parts such as fuel tanks and complex inner shells, choosing a thin sheet with a high r-value is more effective at preventing tearing than simply increasing the thickness.
Work-Hardening Index (n-Value)
The n-value describes how the material distributes strain during deformation. A high n-value spreads strain evenly, delays local thinning (necking) and raises the forming limit. For parts that require large deformation, such as bulging, a thin sheet with a high n-value is the preferred choice, because it can be stretched further before failure.
Selection Process for Stamping Design
Thickness selection should follow a defined sequence. First, determine the part function: is it load-bearing, appearance-critical or an assembly interface? Second, analyze the main stamping processes: is the part primarily deep drawn, bent or blanked? Third, select an initial thickness range from experience or calculation. Fourth, choose a grade with matching properties for the process, such as a high-r-value mild steel for deep drawing. Fifth, work with the die engineer to finalize the thickness tolerance and die clearances. Sixth, run trial stampings and optimize the thickness or grade based on the results.
| Effect | Thick sheet | Thin sheet |
|---|---|---|
| Bending force | High, strong springback | Low, easy to form |
| Deep drawing | High flow resistance, cracking risk | Good flow, wrinkling risk |
| Die clearance sensitivity | Large clearance values | Small clearance values |
| Dimensional accuracy | Depends on thickness uniformity | Depends on thickness uniformity |
| Surface defects | Less sensitive | More sensitive |
| Edge filling | Needs larger radii | Fills corners better |
FAQ
Does thicker sheet always mean stronger parts?
Not automatically. Part strength depends on thickness, but also on material grade and forming quality. A thinner high-strength grade can outperform a thicker mild grade at lower weight.
Why does thick sheet crack during deep drawing?
Thick material has high flow resistance at the die entrance, which concentrates stress and causes tearing. A higher-r-value grade or a redesigned draw helps more than adding thickness.
How is die clearance related to thickness?
Clearance is designed as a percentage of material thickness, commonly 5% to 10% per side for blanking dies. Thickness variation outside tolerance changes the effective clearance and causes burrs or die wear.
What is the best thickness for a deep-drawn part?
The thinnest sheet that meets the strength and rigidity requirements, selected together with a high-r-value grade. For deep drawing, a high r-value prevents thinning better than extra thickness.
Why does thin sheet wrinkle?
Thin sheet has low bending rigidity, so compressive stresses during drawing cause instability and wrinkling. Blank holder force and draw bead design are used to control this.

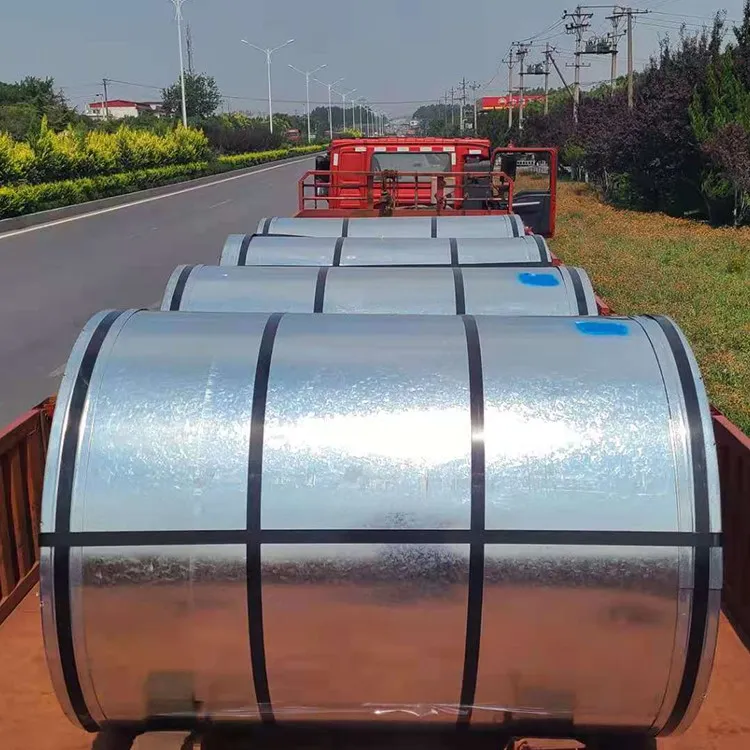

Can thickness variation within a coil be avoided?
Variation is controlled by rolling tolerances. Specify a tight thickness tolerance class from the mill and verify it on the certificate, because gauge variation directly affects stamped part dimensions.
