S320GD Steel
Looking for S320GD galvanized steel suppliers with large monthly supply capacity? As a leading factory, GNEE can supply 5,000 tons/month of S320GD sheets/coils, supporting long-term project partnerships. This guide outlines our production capacity, delivery schedule, and bulk order discount policy.
S320GD is a high-strength hot-dip galvanized low-carbon steel. The zinc coating on its surface provides added corrosion resistance and extends its lifespan. It contains elements like iron, carbon, manganese, and silicon, which give it good strength and formability.
The steel is easy to work with - it can be cut, bent, and stamped into various shapes, making it adaptable for different design and manufacturing needs. This flexibility makes it useful across a range of industries.

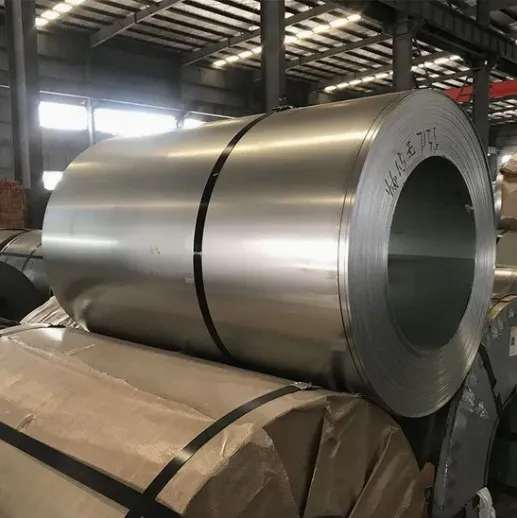

S320GD galvanized steel suppliers
S320GD Galvanized Steel Technical Specifications for Construction
To meet construction demands, S320GD galvanized steel adheres to EN 10346 standards with optimized properties:
-
Mechanical Properties
|
Property |
Value |
Construction Advantage |
|
Yield Strength |
≥320MPa (≤3mm) / ≥300MPa (>3mm) |
Supports structural loads and wind forces |
|
Tensile Strength |
400-550MPa |
Resists deformation in high-stress components |
|
Elongation (A80) |
≥22% |
Enables bending for beams and frames |
|
Impact Energy (-20°C) |
≥27J |
Withstands extreme weather conditions |
-
Stock Dimensions for Construction Projects
|
Thickness (mm) |
Width (mm) |
Length/Coil Weight |
Typical Construction Uses |
|
0.6-3.0 |
600-2000 |
1000-12000mm / 8-15 tons |
Roofing, wall panels, light frames |
|
3.1-10.0 |
600-3000 |
2000-12000mm / 15-25 tons |
Beams, columns, trusses |
|
10.1-20.0 |
600-2500 |
2000-8000mm / 20-30 tons |
Bridge components, foundation supports |
Key Applications of S320GD Galvanized Steel in Construction
-
Roofing & Wall Panels
S320GD galvanized steel is ideal for roofing and wall panels due to its:
Corrosion resistance (Z/ZA/ZM coatings) for long-term outdoor use.
Lightweight yet high strength, reducing structural load.
Excellent formability for curved or profiled panels.
GNEE's 0.6-1.2mm thick stock is widely used in commercial buildings and industrial warehouses.
-
Structural Frames & Trusses
For beams, columns, and trusses, S320GD galvanized steel (3.0-10.0mm) offers:
High yield strength to support building weight.
Good weldability for on-site assembly.
Durability in humid or coastal construction environments.
It's a cost-effective alternative to higher-grade steels for mid-rise buildings.
-
Solar Mounting Systems & Infrastructure
In renewable energy construction, S320GD galvanized steel (1.5-4.0mm) is used for:
Solar panel brackets (resists outdoor corrosion for 15+ years).
Wind turbine support structures (withstands dynamic loads).
Transmission tower components (high strength-to-weight ratio).
Zinc Coating Options for Construction-Grade Durability
Construction materials need long-term corrosion resistance. Our coating options for S320GD galvanized steel include:
|
Coating Type |
Zinc Weight (g/m²) |
Service Life (Outdoor) |
Ideal Construction Environments |
|
Z (Pure Zinc) |
80-120 |
10-15 years |
Temperate regions, indoor structures |
|
ZA (Zinc-Aluminum) |
100-150 |
15-25 years |
Coastal areas, high-humidity regions |
|
ZM (Zinc-Magnesium) |
80-180 |
20-30 years |
Industrial zones, harsh weather |
S320GD galvanized steel is a versatile, high-performance material for construction and engineering, with applications spanning roofing, structural frames, and renewable energy infrastructure. GNEE Steel's 30,000-ton ready stock and 7-day shipment ensure your projects stay on schedule.
With compliant technical specifications, multiple coating options, and factory-direct pricing, S320GD galvanized steel delivers value and reliability. Don't miss our urgent supply advantages – Reserve 30,000-ton S320GD ready stock (7-day shipment) – Click to lock your order with no deposit!
