1.What is the essential difference between galvanized coils and color-coated steel sheets?

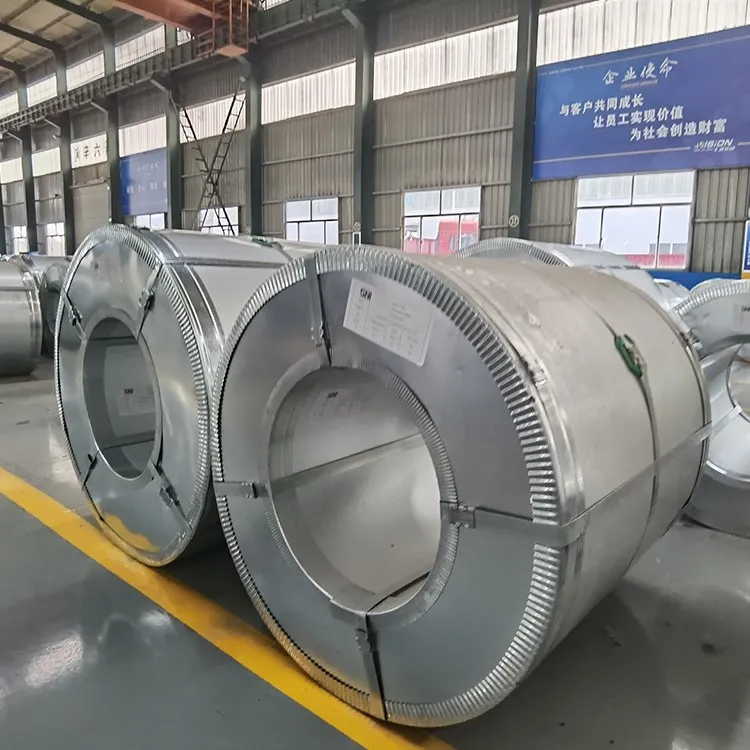

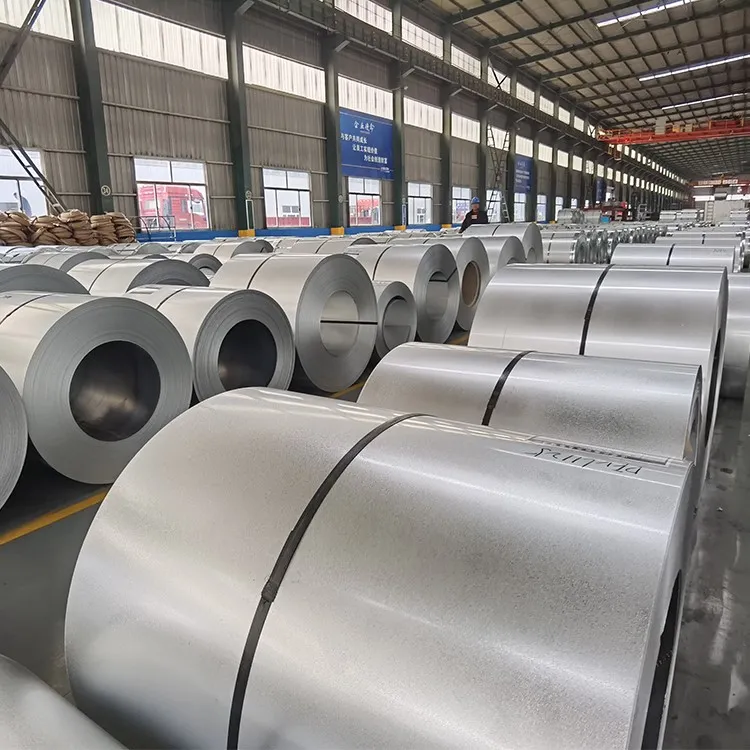

Galvanized steel coil: Essentially, it's the base material. It's made by plating a layer of zinc onto the surface of cold-rolled steel coil, primarily to provide excellent corrosion resistance. It's colorless (silver-white) and serves as the base material for subsequent processing (such as painting).
Color-coated steel sheet: The full name is "color-coated steel sheet," and it's essentially a finished product. It typically uses galvanized steel coil as the base material, undergoes a series of pretreatments, and then continuously coats the surface with various organic coatings (such as polyester, silicone-modified polyester, PVDF, etc.), followed by baking and curing. You can understand it as: Color-coated steel sheet = Galvanized steel coil + Professional surface coating system.
2.What are the pre-coloring treatments for galvanized coils and color steel sheets?
Pre-treatment is required before coloring galvanized coils. They must undergo strict degreasing and chemical conversion treatment (such as phosphating and passivation) to form an "anchor layer" that enhances the adhesion of the paint film.
The pre-coloring treatment of the color steel sheet has been completed. This is a crucial step in the production of color steel sheets.
3.What are the differences in coloring methods between galvanized coils and color-coated steel sheets?
Galvanized coils can be coated by spraying, roller coating, etc., but as a coil material, continuous roller coating is the most suitable.
The color steel plate adopts the most advanced continuous roller coating process, which results in a uniform coating and extremely high efficiency.
4.What is the quality of the coloring on galvanized coils and color-coated steel sheets?
The quality of galvanized coils depends on the level of processing, but it's difficult to achieve the same quality as a full-scale color-coated steel sheet production line by simply coloring individual, small batches.
Color-coated steel sheets are of extremely high quality. The coating thickness, color, and gloss are consistent, and the paint film performance (durability, scratch resistance) is guaranteed.
5.Which material is more suitable as a base layer for coloring?
Galvanized coil is an excellent base layer for coloring.
Why? The zinc layer provides cathodic protection, acting as a "sacrificial anode," for the steel sheet. Even with minor scratches on the paint film, the zinc preferentially corrodes, protecting the steel substrate from rusting. This significantly extends the overall lifespan of the structure.
Therefore, most high-quality color-coated steel sheets choose galvanized coil as their base material. In other words, the color-coated steel sheet you buy likely contains a layer of galvanized coil underneath.
