What Is Astm A242 ?
Astm A242 is the standard specification for high-strength low-alloy structural steel for structural equipment. Material of the given specification is particularly used in cases where weight saving and good resistance to corrosion are important factors.

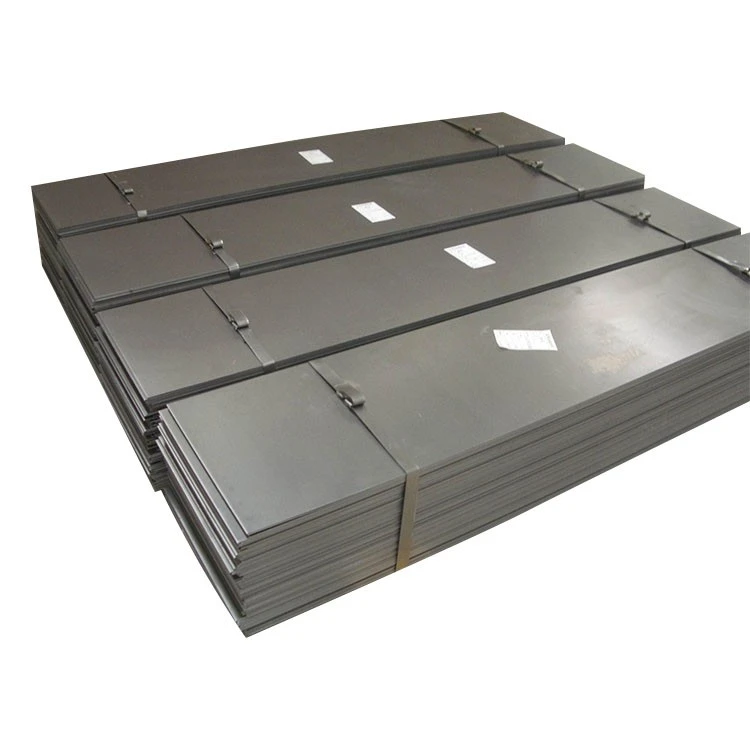

Specification Of ASTM A242 TYPE 1 Plate
| Specifications | ASTM A242/ ASME SA242, A588/ SA588 |
|---|---|
| Size of Hot Rolled Corten steel Plate | 3mm-150mm * 900mm to 4100mm * 3000mm-18000mm |
| Length | 6000mm to 12000mm |
| Width | 1500mm to 3200mm |
| Thickness | 2mm to 460mm |
Corten Steel A Plate Sizes
|
AVAILABLE SIZES |
||
| Width | Thickness | Length |
| 48.00 inch | 1/4 inch | 120.00 inch |
| 60.00 inch | 1/4 inch | 120.00 inch |
| 48.00 inch | 3/8 inch | 120.00 inch |
| 48.00 inch | 1/2 inch | 120.00 inch |
Corten Steel Sheet Thickness
| 3/4" | 1" | 1-1/2" | 1-1/8" | 1-1/4" | 1-3/8" |
| 3/16" | 1/4" | 5/8" | 5/16" | 3/8" | 1/2" |
| 1-3/4" | 2" | >2"-5" |
rade Of ASTM A242 Weathering Steel Plate
Grade B Plates
Grade A Weathering Plates
As Stockholder keep Corten Steel A Plate in stock in a wide range of sizes and thicknesses, see 3mm/ 2mm Corten Steel Sheet Price
Density Of Corten Plate
Density is 7.7 to 8.03 kg/m3.
2mm Corten Steel Sheet Application
exhaust systems
tanks and containers
rail and road vehicles
Bridges
windshields on chimneys
power station precipitators
Corten Steel Plate For Sale
|
CORTEN Steel Plates 10mm thick corten plates corten steel sheet ASTM A242 TYPE 1 Plates ASTM A242 Weathering Steel Plates |
Astm A242 Plate Corten Plate 3mm Corten Sheet ASTM A242 TYPE 2 Plates Corten A Plates
|
ASTM A242 Plate Chemical Composition
| ASTM 242 TYPE -1 | A |
IRSM 41 -97 | |
| Manganese | 1.00 | 0.20-50 | 0.25-0.45 |
| Silicon | 0.25-0.40 | 0.25-0.75 | 0.28-0.72 |
| Phosphorus | 0.15 | 0.07-0.15 | 0.07-0.11 |
| Carbon, Max | 0.15 | 0.12 | 0.10 |
| Sulphur, max | 0.05 | 0.030 | 0.030 |
| Chromium | – | 0.50-1.25 | 0.30-0.50 |
| Nickel, max | – | 0.65 | 0.20-0.49 |
| Molybdenum, max | – | – | – |
| Vanadium | – | – | 0.050 |
| Copper | 0.20 min | 0.25-0.55 | 0.30-0.39 |
| Aluminimum | – | – | 0.030 |
