How Much Zinc Coating Thickness (Microns) Is Required For A 20-Year Outdoor Fence Life?
When planning an outdoor fence project, one critical question dominates material selection: what zinc coating thickness (microns) guarantees a 20-year service life? For galvanized steel fences- the most popular choice for durability and cost-efficiency- the answer depends on corrosion environment, galvanization process, and industry standards. As a trusted supplier of HDG (Hot-Dip Galvanized) and Pre-Galvanized steel pipes, GNEE STEEL breaks down the exact micron requirements, science, and standards to help you spec a 20-year fence with confidence.

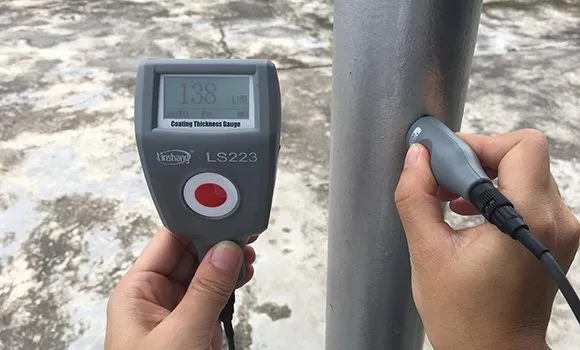

Galvanized Coating Tester
Zinc Coating Thickness vs. Service Life
Zinc coatings protect steel fences via sacrificial anode protection (zinc corrodes first) and physical barrier defense (blocks moisture/oxygen). A 20-year life requires the zinc layer to outlast environmental corrosion. The key rule: service life is directly proportional to zinc coating thickness- thicker coatings = longer life, with minimal maintenance.
The average annual zinc corrosion rate for outdoor fences ranges from 4–8 microns/year (mild rural/urban) to 8–12 microns/year (coastal/industrial). For a 20-year life, the minimum thickness = annual rate × 20 years. This gives a baseline of 80–160 microns- but environment-specific standards refine this further.
Minimum Zinc Coating Thickness for 20-Year Outdoor Fences (By Environment)
Not all outdoor environments are equal. Rural, urban, coastal, and industrial areas have vastly different corrosion intensity, so their micron requirements vary. Below is a GNEE STEEL industry-standard table for 20-year fence life, aligned with GB/T 13912, ASTM A53, and EN 10219.
Table 1: Zinc Coating Thickness (Microns) for 20-Year Outdoor Fence Life
| Corrosion Environment | Description | Minimum Zinc Thickness (Microns) | Zinc Weight (g/m²) | Expected 20-Year Performance |
|---|---|---|---|---|
| Mild Rural | Low humidity, no salt/industrial pollution | ≥70 μm | ≥560 g/m² | Excellent; minimal rust, no maintenance |
| Urban/Suburban | Moderate humidity, light pollution | ≥85 μm | ≥640 g/m² | Perfect; 20+ year life, occasional inspection |
| Coastal/High-Humidity | Salt spray, constant moisture | ≥120 μm | ≥960 g/m² | Reliable; 20-year life with minor touch-ups |
| Heavy Industrial | Chemical fumes, acid rain | ≥150 μm | ≥1200 g/m² | Optimal; 20+ year life in harsh conditions |
Get Zinc Coating Thickness Service Life Table
Key Takeaway: For a universal 20-year outdoor fence, the minimum safe thickness is 85 microns (urban baseline). For coastal/industrial projects, 120+ microns are non-negotiable. Pre-Galvanized pipes (10–30 μm) cannot meet 20-year requirements- only HDG (Hot-Dip Galvanized) pipes deliver the necessary thickness.
Industry Standards Mandating 20-Year Fence Thickness
Global standards bodies define minimum zinc thickness for long-life outdoor steel structures, including fences. These standards ensure compliance and predictable performance.
1. GB/T 13912-2020 (China)
Steel thickness ≥6mm: ≥85 μm average, ≥70 μm local
Steel thickness 3–6mm: ≥75 μm average, ≥55 μm local
Mandatory for outdoor fences, guardrails, and utility structures.
2. ASTM A53 (USA)
HDG steel pipes for outdoor use: ≥55 μm minimum (general), ≥85 μm (20-year design life)
3. EN 10219 (Europe)
C3 (urban) corrosion grade: ≥80 μm
C4 (coastal/industrial) grade: ≥120 μm
4. GNEE STEEL Internal Standard (For 20-Year Fences)
To guarantee 20-year life across all environments, GNEE STEEL specifies:
General outdoor: 85–100 μm
Harsh outdoor: 120–150 μm
All HDG pipes undergo 3rd-party thickness testing (magnetic induction method) to ensure compliance.
Why Pre-Galvanized Fails for 20-Year Life
A common mistake is using Pre-Galvanized (mill-galvanized) pipes for long-term outdoor fences. Pre-Galvanized coatings are applied to steel strips before pipe forming, resulting in:
Thickness: 10–30 μm (40–80 g/m²)
Weak adhesion at welds/cut edges (no zinc coverage)
Service life: 5–10 years outdoors (rusts rapidly in humidity)

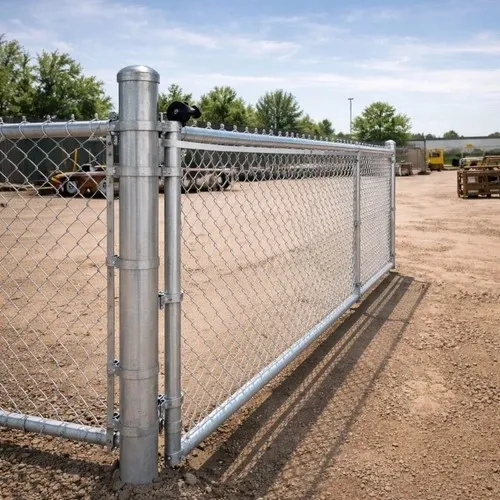

For 20-year performance, only HDG pipes (coated after fabrication, full surface coverage, 45–150 μm thickness) are suitable.
How GNEE STEEL Ensures 20-Year Fence Performance
GNEE STEEL's HDG steel pipes for outdoor fences are engineered to meet or exceed 20-year thickness requirements, with strict quality control:
Process: Pipes are pickled, fluxed, and immersed in 450°C molten zinc for 5–10 minutes, forming a metallurgical bond (no peeling/chipping).
Thickness Customization: Tailored to environment- 85 μm for urban, 120 μm for coastal projects.
Testing: Each batch is tested for zinc thickness (magnetic gauge), adhesion (cross-hatch test), and salt spray resistance (≥500 hours for 85 μm).
Spec Range: Outer diameter 10–813mm, wall thickness 2–60mm, lengths 6m/12m or custom- fits all fence designs.
Frequently Asked Questions (FAQ)
1. Can a fence with 70 μm zinc coating last 20 years?
Only in mild rural environments (low humidity, no salt). In urban areas, 70 μm may last 15–18 years; coastal/industrial areas will see rust in 10 years. For a reliable 20-year life, spec ≥85 μm.
2. Does thicker zinc coating (e.g., 150 μm) add significant cost?
Upgrading from 85 μm to 120 μm increases material cost by 10–15% but extends service life by 5–10 years and eliminates maintenance costs (repainting/replacement). For 20-year projects, the ROI is positive.
3. How is zinc coating thickness measured on site?
Use a magnetic induction thickness gauge (non-destructive). Measure 5–10 points per pipe (edges, welds, flat surfaces) to confirm average thickness meets specs. GNEE STEEL provides test reports with every order.
4. Can I paint a galvanized fence to extend life beyond 20 years?
Yes. Painting HDG fences (85+ μm) adds a secondary barrier, extending life to 30–40 years. Use a zinc-rich primer + acrylic topcoat for best adhesion. Avoid painting Pre-Galvanized fences- thin coatings will peel.
5. What if my fence has partial zinc coating damage (scratches)?
HDG coatings have self-healing properties: surrounding zinc ions corrode to cover small scratches (<5mm). For larger damage, touch up with zinc-rich paint. Pre-Galvanized scratches rust immediately with no self-healing.
