HDG (Hot-Dip Galvanized) vs. Pre-Galvanized Steel Pipes
When it comes to outdoor fence construction, selecting the right steel pipe material is critical to ensuring durability, corrosion resistance, and long-term cost-effectiveness. Two of the most commonly used galvanized steel pipe options in the industry are Hot-Dip Galvanized (HDG) steel pipes and Pre-Galvanized steel pipes. While both feature a zinc coating to protect against rust and environmental damage, their manufacturing processes, performance characteristics, and suitability for outdoor fence applications differ significantly.
As a leading provider of high-quality galvanized steel pipes, GNEE STEEL offers a comprehensive range of HDG steel pipes and Pre-Galvanized steel pipes tailored to outdoor fence projects, ensuring optimal performance and value for every application.
Galvanization is a proven method for enhancing the corrosion resistance of steel, extending its service life in outdoor environments where exposure to rain, humidity, UV radiation, and even salt spray (in coastal areas) can cause rapid deterioration. Zinc acts as a sacrificial anode, corroding preferentially to the steel substrate, thus protecting the underlying metal from rust and structural damage. However, the way zinc is applied to the steel pipe-whether before or after pipe formation-determines the coating's thickness, adhesion, and overall effectiveness. This distinction is what sets HDG and Pre-Galvanized steel pipes apart, especially when used in outdoor fence systems that require consistent performance and minimal maintenance.

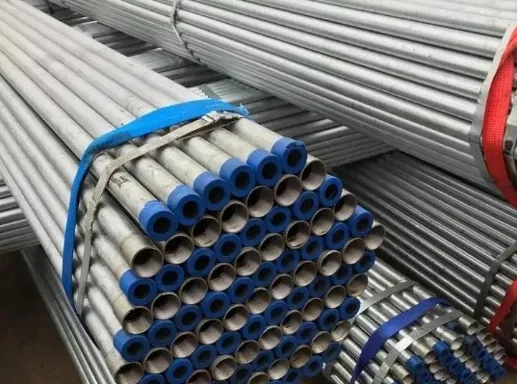

HDG (Hot-Dip Galvanized) Steel Pipes for Outdoor Fences
Hot-Dip Galvanized (HDG) steel pipes are manufactured by first producing standard welded or seamless steel pipes, then immersing the finished pipes into a bath of molten zinc at a temperature of 450°C – 460°C after thorough pickling and rust removal. This process creates a metallurgical bond between the zinc and the steel substrate, resulting in a thick, uniform zinc coating that covers every surface of the pipe-including edges, welds, and complex geometries. GNEE STEEL's HDG steel pipes feature a zinc coating thickness of 45–150 μm (or more), with a zinc weight of over 200 g/m², ensuring superior corrosion resistance and durability in even the harshest outdoor environments.
One of the key advantages of HDG steel pipes for outdoor fences is their exceptional corrosion resistance. The thick zinc coating acts as a robust barrier against moisture, oxygen, and other corrosive elements, making them ideal for use in coastal areas, humid climates, industrial zones, and rural environments where fences are exposed to constant weathering. Unlike other coating methods, the metallurgical bond of HDG ensures the zinc layer does not peel, chip, or crack easily, even when subjected to mechanical stress such as impact, bending, or installation handling. This durability translates to a longer service life-GNEE STEEL's HDG steel pipes typically last 20–50 years depending on the environment, significantly reducing the need for frequent replacement or maintenance.
For outdoor fence applications, HDG steel pipes also offer excellent structural strength. GNEE STEEL's HDG steel pipes are available in a wide range of specifications, including outer diameters from 10 mm to 813 mm, wall thicknesses from 2 mm to 60 mm, and lengths of 6 m, 12 m, or custom lengths as per project requirements. This versatility makes them suitable for all types of outdoor fences, from residential boundary fences and commercial security fences to industrial perimeter fences and agricultural fencing. The HDG coating also provides a self-healing property: if the coating is slightly damaged, the surrounding zinc ions can repair the area through an electrochemical reaction, further extending the pipe's service life.
HDG vs. Pre-Galvanized Steel Pipes
To help you make an informed decision for your outdoor fence project, below is a detailed comparison of GNEE STEEL's HDG and Pre-Galvanized steel pipes, focusing on the critical factors that impact fence performance, durability, and cost:
|
Comparison Aspect |
HDG (Hot-Dip Galvanized) Steel Pipes |
Pre-Galvanized Steel Pipes |
|---|---|---|
|
Galvanizing Process |
Finished steel pipes are immersed in molten zinc (450°C–460°C) after pickling and rust removal, forming a metallurgical bond with the steel substrate. |
Zinc is applied to steel strips via electroplating or continuous hot-dip before pipe formation, welding, and shaping. |
|
Zinc Coating Thickness |
Thicker (45–150 μm), zinc weight >200 g/m², ensuring robust corrosion protection. |
Thinner (10–30 μm), zinc weight 40–80 g/m², providing moderate corrosion resistance. |
|
Adhesion |
Strong metallurgical bond; coating does not peel, chip, or crack easily, even under mechanical stress. |
Weaker adhesion; coating may peel or chip, especially at welds and cut edges, which often lack zinc coverage. |
|
Corrosion Resistance |
Excellent; suitable for harsh outdoor environments (coastal, humid, industrial, rural) and resistant to salt spray, moisture, and UV radiation. |
Moderate; suitable for dry, low-corrosion environments only; vulnerable to rust in humid or harsh conditions. |
|
Service Life (Outdoor) |
20–50 years depending on the environment; minimal maintenance required. |
5–10 years; requires frequent maintenance, repainting, or replacement in harsh outdoor conditions. |
|
Cost |
Higher upfront cost due to more complex manufacturing process and thicker zinc coating; lower long-term cost due to minimal maintenance and long service life. |
Lower upfront cost; higher long-term cost due to frequent maintenance, repainting, and replacement needs. |
|
Surface Finish |
Rougher or matte finish, darker gray surface; can be painted if aesthetic customization is needed. |
Smooth, shiny metallic surface; ideal for applications where aesthetic appearance is a priority (dry environments only). |
|
Structural Strength |
High; available in thick wall thicknesses (up to 60 mm) for heavy-duty fence applications; maintains strength even in harsh conditions. |
Moderate; limited to thinner wall thicknesses (typically below 2.5 mm); less suitable for heavy-duty or long-term outdoor fences. |
|
Ideal Outdoor Fence Applications |
Residential boundary fences, commercial security fences, industrial perimeter fences, agricultural fencing, coastal area fences, and high-traffic outdoor areas. |
Temporary outdoor fences, decorative fences in dry environments, and low-traffic areas where cost is the primary concern. |
Request Latest Steel Price Today
Which Is Better for Your Outdoor Fence Project?
The choice between HDG and Pre-Galvanized steel pipes for your outdoor fence depends on three key factors: project budget, environmental conditions, and desired service life. For most outdoor fence projects-especially those in coastal, humid, or industrial areas-HDG steel pipes are the superior choice. While they have a higher upfront cost, their exceptional corrosion resistance, long service life, and minimal maintenance requirements make them the most cost-effective option in the long run. GNEE STEEL's HDG steel pipes are manufactured to meet international standards (BS 1387, EN 10219, ASTM A53, GB/T 3091-2015) and are available in custom specifications to fit any outdoor fence design, from simple residential fences to heavy-duty industrial perimeter systems.
Pre-Galvanized steel pipes may be suitable for temporary outdoor fences, decorative fences in dry, low-corrosion environments, or projects with extremely tight budgets where long-term durability is not a priority. However, it is important to note that choosing Pre-Galvanized pipes for harsh outdoor environments will result in higher long-term costs due to frequent maintenance, repainting, and replacement. GNEE STEEL also offers high-quality Pre-Galvanized steel pipes for these specific applications, ensuring consistent quality and performance within their limitations.
Frequently Asked Questions (FAQ)
1. Can HDG steel pipes be painted for better aesthetics in outdoor fence applications?
Yes, HDG steel pipes can be painted to enhance their aesthetic appeal for outdoor fences. The rough matte surface of HDG pipes provides excellent adhesion for paint, ensuring the paint layer remains durable and long-lasting. GNEE STEEL recommends using a high-quality primer and topcoat designed for galvanized steel to maximize paint adhesion and further enhance corrosion resistance. Painting HDG pipes allows you to customize the color of your fence to match your project's design requirements while maintaining the pipe's exceptional durability.
2. Are Pre-Galvanized steel pipes suitable for coastal outdoor fences?
No, Pre-Galvanized steel pipes are not recommended for coastal outdoor fences. The thin zinc coating (10–30 μm) on Pre-Galvanized pipes is not sufficient to withstand the corrosive effects of salt spray and high humidity in coastal areas. This will lead to rapid rusting, corrosion, and premature failure of the fence system. For coastal outdoor fences, HDG steel pipes are the ideal choice, as their thick zinc coating (45–150 μm) provides superior resistance to salt spray and other corrosive elements, ensuring a long service life of 20–50 years.
3. What is the maintenance requirement for HDG steel pipes in outdoor fences?
HDG steel pipes require minimal maintenance in outdoor fence applications. The thick, metallurgically bonded zinc coating provides long-lasting corrosion protection, so there is no need for frequent repainting or rust treatment. Occasional inspections to check for any mechanical damage (such as scratches or dents) are recommended, and any damaged areas can be touched up with a zinc-rich paint to maintain protection. GNEE STEEL's HDG steel pipes are designed to be low-maintenance, reducing long-term costs and ensuring hassle-free performance for outdoor fences.
4. Can GNEE STEEL provide custom specifications for HDG and Pre-Galvanized steel pipes for outdoor fences?
Yes, GNEE STEEL offers custom specifications for both HDG and Pre-Galvanized steel pipes to meet the unique needs of outdoor fence projects. We can customize the outer diameter (10 mm–813 mm), wall thickness (2 mm–60 mm), length (standard 6 m, 12 m, or custom lengths), and end finish (bevel, plain, thread and coupling, grooved) to fit your specific fence design and installation requirements. Our team works closely with customers to ensure the steel pipes meet their project's exact specifications, delivering tailored solutions that optimize performance and value.
5. Which galvanized steel pipe option offers better value for money in the long run for outdoor fences?
HDG steel pipes offer better value for money in the long run for most outdoor fence projects. While HDG pipes have a higher upfront cost compared to Pre-Galvanized pipes, their exceptional corrosion resistance and long service life (20–50 years) eliminate the need for frequent maintenance, repainting, and replacement. Pre-Galvanized pipes have a lower upfront cost but require more frequent maintenance and replacement (service life of 5–10 years in outdoor environments), leading to higher long-term costs. For outdoor fences that require durability and cost-effectiveness over time, GNEE STEEL's HDG steel pipes are the optimal choice.
