Strut channels (C-channel steel) are the backbone of modern construction, mechanical, and renewable energy projects, providing versatile, reliable support for everything from piping and HVAC systems to solar mounting structures. Among the most widely used solutions are single-sided C-channel (unistrut) and double-sided C-channel (back-to-back strut), each engineered for distinct load-bearing, installation, and application needs. This guide breaks down their design, performance, specifications, and ideal use cases to help you select the perfect strut channel for your project.

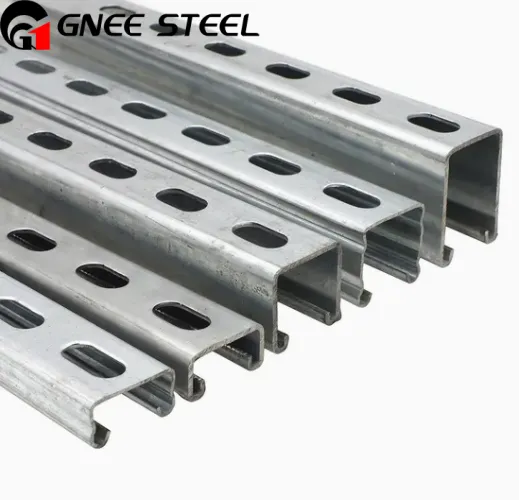

Single-Sided C-Channel
1.1 Core Applications
Single-sided C-channel is the go-to solution for a wide range of light-to-medium load support systems, with unmatched flexibility and ease of use:
Rapid, reliable support system integration: Quickly and effectively build various support structures with steel structures, concrete structures, or other frameworks, ideal for MEP (Mechanical, Electrical, Plumbing) installations.
Streamlined pipe & ductwork support: Enables fast, secure pipe fixing, perfect for air duct, cable tray, and process equipment installations in commercial, industrial, and residential buildings.
Full accessory compatibility: All specialized fittings and brackets are fully compatible with C-channel steel, allowing for custom configurations and safe, code-compliant installations.
Solar & renewable energy integration: A top choice for distributed rooftop solar mounting systems, thanks to its lightweight design and pre-punched hole flexibility.
1.2 Design & Structural Features
Our single-sided C-channel is engineered for performance, durability, and ease of use, with industry-leading design innovations:
Premium aesthetic & precision manufacturing: A new-generation C-channel profile with a sleek, modern design, advanced engineering concepts, and precision manufacturing processes.
Axial stiffening ribs: Integrated axial ribs enhance torsional resistance, ensuring structural stability under dynamic loads and long-term use.
Rolled edge serration design: The unique rolled edge with serrations, paired with patented strut channel nuts, delivers exceptional shear resistance, slip prevention, and impact resistance, eliminating component movement over time.
1.3 Installation Advantages
On-site cutting precision: The built-in scale ensures every cut is accurate, reducing material waste and installation time.
Multi-size compatibility: A full range of section heights to suit different pipe, duct, and cable tray specifications, delivering cost-effective, tailored solutions for every project.
Modular, tool-free assembly: Compatible with standard strut fittings for quick, "bolt-and-go" installation, cutting labor costs and project timelines.
1.4 Technical Specifications & Material Standards
Base Material: 2.5/2.75mm thick 275g hot-dip galvanized steel sheet (SGH340), manufactured in compliance with JIS G 3302 international standards.
Corrosion Protection Options:
Pre-galvanized coating: 20μm thickness (ideal for indoor, dry environments)
Hot-dip galvanized coating: 65μm / 80μm thickness (ideal for outdoor, coastal, and industrial corrosive environments)
Epoxy powder coating (custom colors available for aesthetic and enhanced corrosion protection)
Stainless steel (304/316) for extreme corrosive environments (chemical plants, marine applications)
Single-Sided C-Channel Product Specification Table
| Model No. | Thickness (mm) | Section Height (mm) | Standard Length (m) |
|---|---|---|---|
| Single-Sided Ribbed Strut AS-RS-21 | 2.0/2.5 | 21 | 6.0/3.0 |
| Single-Sided Ribbed Strut AS-RS-41 | 2.0/2.5 | 41 | 6.0/3.0 |
| Single-Sided Ribbed Strut AS-RS-41 (Non-Punched) | 2.0 | 41 | 6.0/3.0 |
| Single-Sided Ribbed Strut AS-RS-52 | 2.5 | 52 | 6.0/3.0 |
| Single-Sided Ribbed Strut AS-RS-62 | 2.0/2.5 | 62 | 6.0/3.0 |
| Single-Sided Ribbed Strut AS-RS-72 | 2.75 | 72 | 6.0/3.0 |
| Single-Sided Ribbed Strut AS-RS-82 | 2.75 | 82 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-21 | 2.5 | 21 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-41 | 2.5 | 41 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-41 (Non-Punched) | 2.5 | 41 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-52 | 2.75 | 52 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-62 | 2.75 | 62 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-72 | 2.75 | 72 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-82 | 2.75 | 82 | 6.0/3 |
Request Latest Steel Price Today

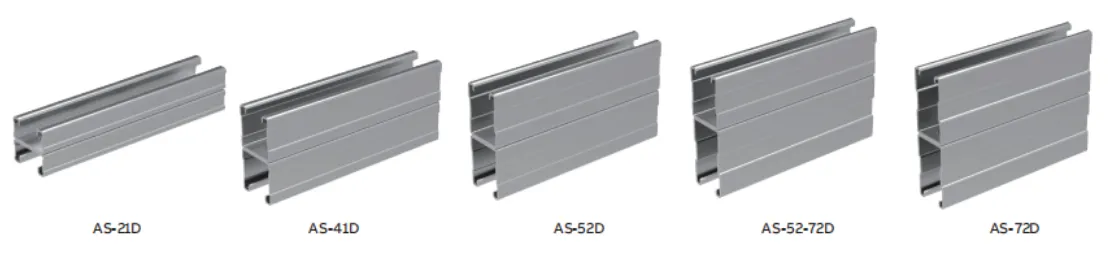

Double-Sided C-Channel (Back-to-Back Strut)
2.1 Core Applications
Double-sided C-channel is engineered for heavy-load, structural support applications, where maximum strength and stability are non-negotiable:
Primary structural support components: Used as vertical columns, main beams, and secondary beams for large-scale support systems, including heavy industrial pipe racks, solar ground mount structures, and seismic bracing systems.
Connection & transition component: Acts as a reliable interface between base structures and support systems, enabling rapid, secure installation of multi-level support frameworks.
Dual-direction support & suspension: Back-to-back strut doubles load-bearing capacity, enabling bidirectional support and overhead suspension for heavy equipment, HVAC units, and large-scale solar arrays.
Utility-scale solar mounting: The preferred solution for 100MW+ ground-mounted solar power stations, solar carports, and agrivoltaic (agri-PV) systems, thanks to its exceptional load-bearing capacity.
2.2 Design & Structural Features
Our double-sided C-channel builds on the single-sided design with heavy-duty enhancements for extreme performance:
Premium aesthetic & precision manufacturing: Same new-generation C-channel profile with sleek design, advanced engineering, and precision manufacturing.
Axial stiffening ribs: Enhanced axial ribs deliver superior bending resistance, making it ideal for long-span, heavy-load applications.
Rolled edge serration design: The same industry-leading serrated rolled edge, paired with patented strut nuts, for maximum shear, slip, and impact resistance.
Slotted back design: Longitudinal slots on both sides enable flexible installation from any angle, perfect for complex structural configurations.
Riveted assembly technology: Manufactured with high-end equipment riveting, eliminating the need for on-site welding, ensuring safety, reliability, and consistent performance.
2.3 Installation Advantages
On-site customization: Cut to any required length directly on the job site, adapting to project-specific design requirements.
Multi-size compatibility: A full range of section heights to suit heavy-duty pipe, duct, and solar mounting applications, delivering cost-effective structural solutions.
Weld-free, seismic-resistant installation: Riveted assembly ensures consistent structural integrity, making it ideal for seismic zones and high-wind regions.
2.4 Technical Specifications & Material Standards
Base Material: 2.5/2.75mm thick 275g hot-dip galvanized steel sheet (SGH340), manufactured in compliance with JIS G 3302 international standards.
Corrosion Protection Options:
Pre-galvanized coating: 20μm thickness (indoor applications)
Hot-dip galvanized coating: 65μm / 80μm thickness (outdoor, corrosive environments)
Epoxy powder coating (custom colors)
Stainless steel (304/316) for extreme environments
Double-Sided C-Channel Product Specification Table
| Model No. | Thickness (mm) | Section Height (mm) | Standard Length (m) |
|---|---|---|---|
| Double-Sided Ribbed Strut AS-RS-21D | 2.0/2.5 | 42 | 6.0/3.0 |
| Double-Sided Ribbed Strut AS-RS-41D | 2.0/2.5 | 82 | 6.0/3.0 |
| Double-Sided Ribbed Strut AS-RS-52D | 2.5 | 104 | 6.0/3.0 |
| Double-Sided Ribbed Strut AS-RS-52-72D | 2.5/2.75 | 124 | 6.0/3.0 |
| Double-Sided Ribbed Strut AS-RS-72D | 2.75 | 144 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-72D | 2.5 | 144 | 6.0/3.0 |
| Single-Sided Flat Strut AS-FS-41D | 2.5 | 82 |
6.0/3.0 |
Request Latest Steel Price Today
Single-Sided vs. Double-Sided C-Channel
To help you select the right strut channel for your project, we've compiled a side-by-side comparison of core performance indicators:
| Performance Indicator | Single-Sided C-Channel (Unistrut) | Double-Sided C-Channel (Back-to-Back Strut) |
|---|---|---|
| Load-Bearing Capacity | Light-to-medium loads (rooftop solar, MEP, small pipe racks) | Heavy loads (ground mount solar, industrial pipe racks, seismic bracing) |
| Structural Strength | High torsional resistance, ideal for dynamic light loads | 2x higher bending & load capacity, ideal for static heavy loads |
| Weight & Installation | Lightweight, fast modular installation, low labor cost | Heavier, requires structural planning, ideal for permanent installations |
| Application Scenarios | Rooftop solar, MEP, HVAC, cable tray, residential/commercial construction | Utility-scale solar, industrial pipe racks, solar carports, seismic bracing, heavy equipment support |
| Cost Efficiency | Lower upfront cost, ideal for small-to-medium projects | Higher upfront cost, lower long-term maintenance, ideal for large-scale projects |
| Flexibility | High, easy on-site adjustment & modification | Moderate, designed for fixed structural configurations |
Request Latest Steel Price Today
Frequently Asked Questions (FAQ)
Q1: What is the difference between single-sided and double-sided C-channel for solar mounting?
A: Single-sided C-channel is the preferred choice for distributed rooftop solar projects, thanks to its lightweight design, fast installation, and low roof load impact. Double-sided C-channel is engineered for utility-scale ground-mounted solar, solar carports, and high wind/snow load regions, delivering 2x the load-bearing capacity to support large solar arrays and extreme weather conditions.
Q2: What corrosion protection is best for coastal or industrial environments?
A: For coastal, high-humidity, or industrial corrosive environments, we recommend 80μm hot-dip galvanized coating or 304/316 stainless steel for maximum corrosion resistance, ensuring a 25+ year service life. For indoor, dry environments, 20μm pre-galvanized coating is a cost-effective solution.
Q3: Can I use single-sided C-channel for seismic bracing systems?
A: While single-sided C-channel can be used for light seismic bracing, double-sided C-channel is the industry standard for seismic bracing systems, thanks to its superior bending strength and structural stability, ensuring compliance with international seismic design codes.
Q4: What is the minimum order quantity (MOQ) and lead time for custom strut channels?
A: For standard single-sided and double-sided C-channel profiles, our MOQ is 5 tons with 3-7 day lead time for spot stock. For custom-processed products (special lengths, custom coatings, non-standard hole patterns), the MOQ is 10 tons with a 7-15 day production lead time, depending on order quantity.
Q5: Do your strut channels comply with international standards?
A: Yes. All our C-channel strut products are manufactured in compliance with JIS G 3302, ASTM A653, and EN 10346 international standards. We provide third-party testing reports from SGS, BV, and TÜV, including material composition, coating thickness, and mechanical load testing, to ensure compliance with local building codes and project requirements.
