Single-phase dry-type transformers are widely used in power distribution systems, factories, mines, ports, and other places that require power distribution and transformation. They can be used to transform voltage levels, regulate voltage, and provide power to various loads.
Compared with liquid-filled transformers, single-phase dry-type transformers have advantages such as small size, light weight, easy installation, no need for oil storage and maintenance, no pollution to the environment, and no fire hazards.
GNEE types DS-3 (single-phase) and DT-3 (three-phase) general purpose ventilated dry-type transformers are two-winding, self-cooled, and available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed for continuous operation at rated kVA. They are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards.
| Product Name | Transformer |
| Type | Oil-immersed/ dry type/ special transformer |
| Rated Capacity | 30-2500kva |
| Phase number | 1/3 |
| Core material | cold-rolled grain oriented silicon steel |
| Shape of core | EI |
| Connection symbol | Dyn11/Yyn0/Yd11 |
| Short circuit impedance | 3.5%-10% |
| Frequency Characteristics | Power Frequency |
| Other type of core | EE/EC/EF/ETD/EEL/EPC/UU/PQ/EQ/EFD |
| Usage | Power Transformer, Distribution Transformer |
| Certification | ISO9001, CCC |
| Production Capacity | 10000 PIECE/YEAR |
| Transport Package | Standard Export Package for Ocean Transportation |

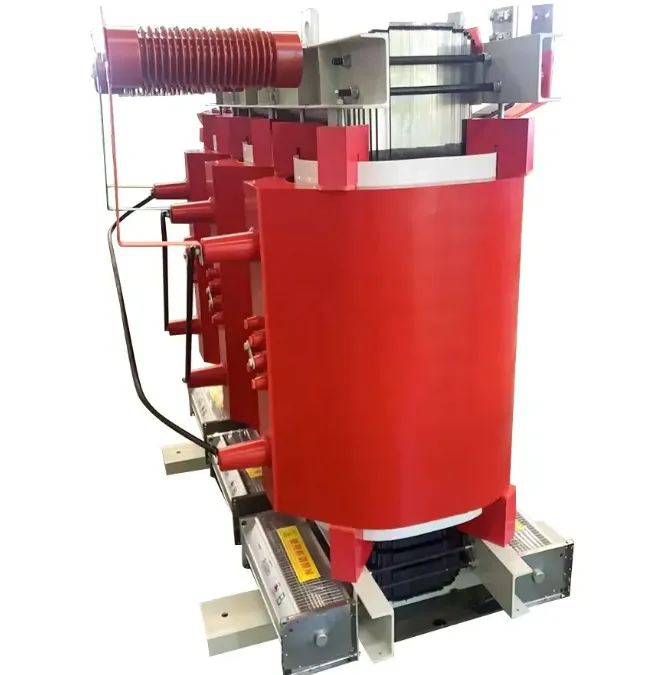

Cast resin dry type transformer
Core features
- Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
- Ventilated dry-type distribution transformers provide options in aluminum or copper windings
- Available in 150 °C, 115 °C, and 80 °C temperature rise
- Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
- Available in 60 and 50 Hz
- NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
- Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
