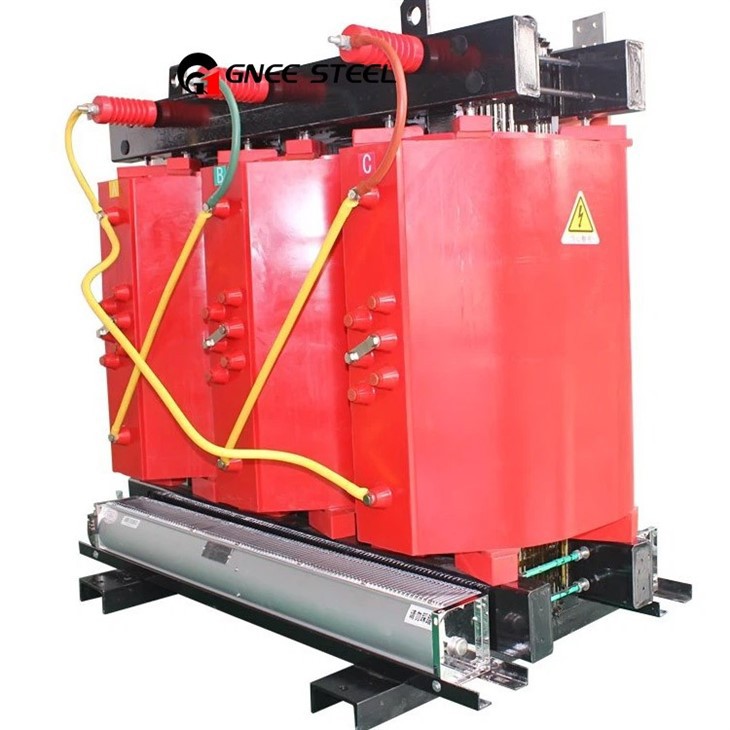

The 10KV Class Three Phase Epoxy-resin Dry-type Transformer can perform power distribution work for heavy load centers represented by commercial districts, factories, and shipyards. The Epoxy-resin Dry-type Transformer produced by GNEE strictly complies with the requirements of IEEE 60076.CSA, ANSI, and SGS. With rich production and design experience, we can complete the design and production within two weeks. Provide strong support for your electric business.
Technical Parameter:
| Rated capacity kVA | Voltage tap range | Connection symbol | No-load loss kW | Load loss kW | No-load current % | Short circuit impedance % | ||||
| HV kV | HV tap range % | LV kV | 130ºC(B)(100ºC) | 155ºC(F)(120ºC) | 180ºC(H)(145ºC) | |||||
| SCB10-50 | 11 15 20 33 |
±2.5 ±5 |
0.4 | Dyn11 Yyn0 |
0.35 | 1.17 | 1.23 | 1.30 | 2 | 6 |
| SCB10-100 | 0.54 | 1.87 | 1.99 | 2.13 | 1.8 | |||||
| SCB10-160 | 0.66 | 2.35 | 250 | 2.64 | 1.5 | |||||
| SCB10-200 | 0.73 | 2.77 | 2.94 | 3.14 | 1.5 | |||||
| SCB10-250 | ±2×2.5 ±5 |
0.85 | 3.22 | 3.42 | 3.66 | 1.3 | ||||
| SCB10-315 | 0.96 | 3.85 | 4.08 | 4.36 | 1.3 | |||||
| SCB10-400 | 1.15 | 4.65 | 4.84 | 5.20 | 1.1 | |||||
| SCB10-500 | 1.35 | 5.46 | 5.79 | 6.19 | 1.1 | |||||
| SCB10-630 | 1.53 | 6.45 | 6.84 | 7.32 | 1 | |||||
| SCB10-800 | 1.74 | 7.79 | 8.26 | 8.85 | 1 | |||||
| SCB10-1000 | 2.07 | 9.22 | 9.77 | 10.4 | 0.85 | |||||
| SCB10-1250 | 2.38 | 10.8 | 11.5 | 12.3 | 0.85 | |||||
| SCB10-1600 | 2.79 | 13 | 13.8 | 14.8 | 0.85 | |||||
| SCB10-2000 | 3.24 | 15.4 | 16.3 | 17.5 | 0.7 | |||||
| SCB10-2500 | 3.87 | 18.2 | 19.3 | 20.7 | 0.7 | |||||
| SCB10-2000 | 3.24 | 16.8 | 17.8 | 19.1 | 0.7 | 8 | ||||
| SCB10-2500 | 3.87 | 20 | 21.2 | 22.7 | 0.7 | |||||
10KV Class Three Phase Epoxy-resin Dry-type Transformer
Epoxy-resin Insulation Dry-type Transformer
The product equipped with temperature protection control system to provide reliable guarantee for transformer safe operation.
High quality ,according to the product to have already been put into operation,the operation reliability of products hasreached the international advanced level.
Box coil:
Our company 's winding ends potting with resin,curing forming, moisture proof antifouling. Foil type coils has solved the low voltage,large current coil short-circuit stress around the product,Ann circle imbalance,cooling effect is poor,exist around the system Angle,artificially welding quality unstable outstanding problems.
Temperature control device:
Our products use BWDK series temperature sensor signal thermometer. It can automatically detect and display the working temperature of each phase coil, and has the functions of over temperature alarm and trip.
our gNEE factory
Packaging&shipping
test creatificate
exhibition photos
customer visit case
gNEE Teams
We can offer the complete range of machines and equipment for oil immersed and dry type transformers. Silicon steel slitting line, transformer core cutting line, coil winding machine, foil winding machine, vacuum drying oven, vacuum casting tank, VPI equipment, corrugated fin forming machine, corrugated fin welding machine, spot welding machine, transformer testing equipment , transformer radiator production line, and machine tools, etc.
